Request a Quote

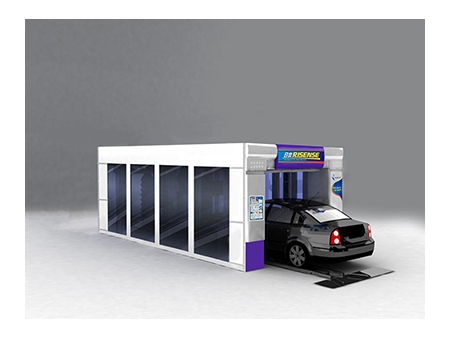

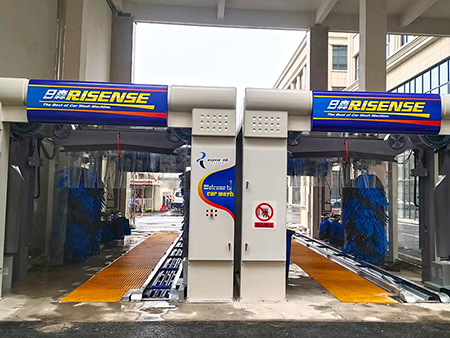

This tunnel car wash system features 9 brushes, and will wash every aspect of a car, all while using less water and a lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Parameters
Tunnel car wash machine CC-690
Overall dimension 9500*3800*3440mm
Length of conveyor:11.6m(Including wheel guide)
Installation size 11880*4000mm
Voltage AC 380V 50Hz (5-wire system)
Water supply Pipe diameter: DN25 Water flow≥200L/min
Air supply Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min
Ground flatness Deviation≤10mm
Available car to wash Car\jeep\coach within 10 seats
Moving range 5300*2100*2100mm (wheelbase≤3200mm)
Car wash capacity 45-55 sets/hour
Water consumption 150L/car
Power consumption 0.6kW/car
Shampoo consumption 20-40ml/car
Wax consumption 30ml/car
Key parts
PLC Mitsubishi from Japan
Optoelectronic monitoring Banner from the USA
Brush rotating motor SITI
Contactor Schneider from France
Proximity Switch Pepperl   Fuchs from Germany
Small brush cylinder AirTAC
Wax suction pump Bello Zon from Germany
Hot-dipped galvanized frame 1 group
Shampoo spray system 1 group
Wax spray system 1 group
Contour-following drying system 1 group
Car entry guide rail apparatus 1 group
Chassis spraying system Can be added
High pressure water spraying device Can be added
Equipment data intellectualization Management, spot check, operation
Self-diagnose system Automatic fault display, self-checking
Short vertical brushes 4
Long vertical brushes 4
Top brush 1
Advantages
  • The galvanized frame of the tunnel car wash system is both solid and durable.
  • The high pressure wash system improves the washing performance.
  • The foam and water wax proportioning system is easy to use.
  • Four groups of powerful dryers.
  • The liquid automatic siphon is simple to operate.
  • Multiple cleaning and long term washing completely washes the car, and ensures a superior washing performance.
  • The PLC fully-automatic computer control system ensures a higher security.
  • A one-click washing method is easy to operate.
  • The contour-following drying system creates a better drying performance.
  • The built-in self-diagnosing system will recognize and remove any mechanical obstacles during the washing process.
Details

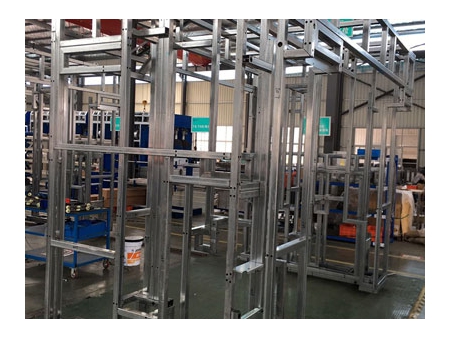

  • Non-welded hot-dipped galvanized steel frame

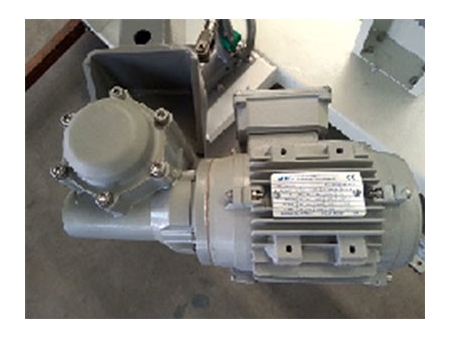

  • SITI Motor

  • Air dryer

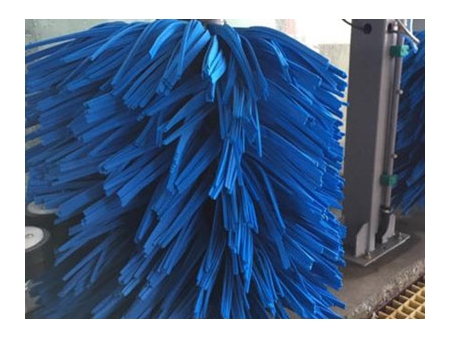

  • Foam brushes

    After years of research and development, 4th generation of swallow-tailed foam brushes contain an appropriate proportion of rubber and thus prevent potential risks.
    Foam brushes have great capacity to retain water, which incredibly improve the washing effect.

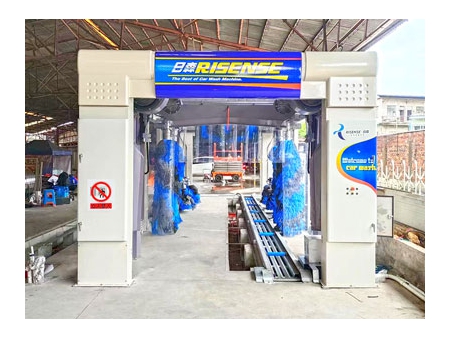

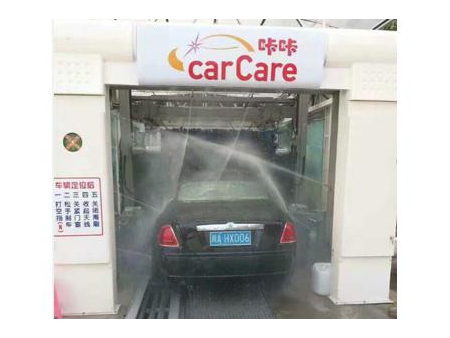

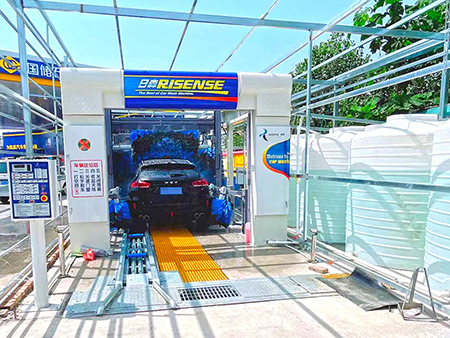

  • The conveyors automatically move the car to complete the whole process from pre-soak rinse to air drying. Tunnel car wash equipment CC-690 (9-Brush) can clean cars continuously.

    Features
    Easy to manage;
    Various combinations of car wash methods;
    High efficiency: it can wash 45 to 55 cars per hour.
    Low energy consumption: on average, it consumes 150 L of water and 0.6 kWh of electricity per vehicle.

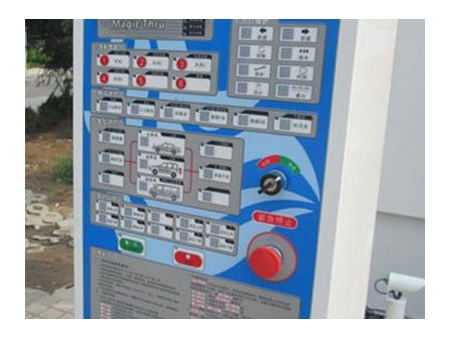

  • Control panel

    Being enclosed
    Water proofing
    Long life of the circuit board
  • Conveyors

    Suitable for various types of cars
    Equipped with P209 pillow block bearing
    Long service life
    Convenient to maintain

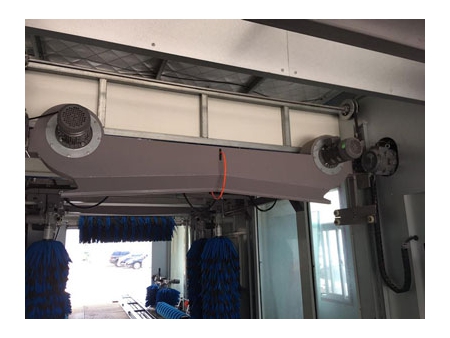

  • Dryers

    Integral top dryers on both sides
    High-pressure air drying effect
    Move vertically to adapt to various cars
  • Signals at the entrance

    Red cross and green arrow signal light;
    Easy to notice
  • Width

    Tunnel car wash equipment CC-690 is 3.8 meters in width
    2.2 meters for car wash is much safer
Configurations
Standard Devices Optional Devices
Brush system Undercarriage wash system
Hot dip galvanized frame High-pressure water devices
Shampoo spray system
Water wax spray system
Contour-following drying system
Car entry guide rail apparatus
Equipment data intellectualization
Self-diagnose system
