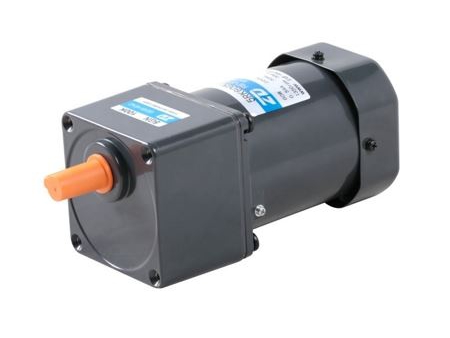

90mm 60W Reversible Motor Manufacturer

90mm 60W Reversible Motor

Request a Quote

View All: http://zd-drivers.com/1-3-5-reversible-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
5RK60GU-AF	60	1ph 100	50	1.26	470	470	1250	25
			60	1.70		380	1550
5RK60GU-EF	60	1ph 110	60	1.05	330	380	1550	15
		1ph 120			380
5RK60GU-CF	60	1ph 220	50	0.55	420	470	1250	4.5
		1ph 230		0.60	460
5RK60GU-HF	60	1ph 220	60	0.55	420	380	1550	4.5
		1ph 230		0.60	460

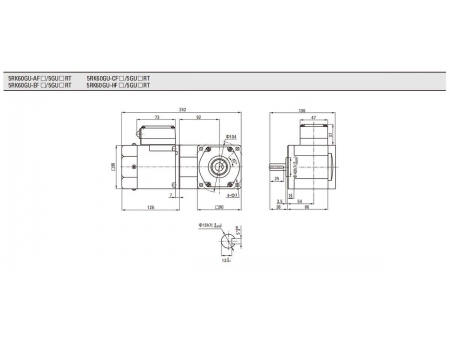

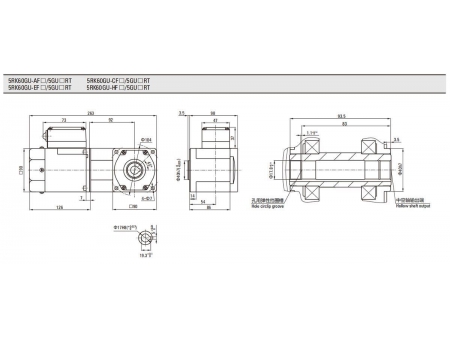

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5RK60GU-AF 5RK60GU-EF 5RK60GU-CF 5RK60GU-HF	5GU()RC 5GU()RT	Allowance Torque	50Hz	2.37	2.84	3.95	4.73	5.68	7.89	9.47	10.2	14.2	17.0	20.0	20.0	20.0	20.0	20.0	20.0
5RK60GU-AF 5RK60GU-EF 5RK60GU-CF 5RK60GU-HF	5GU()RC 5GU()RT	Allowance Torque	60Hz	1.91	2.29	3.18	3.82	4.58	6.36	7.64	8.25	11.5	13.7	17.2	20.0	20.0	20.0	20.0	20.0

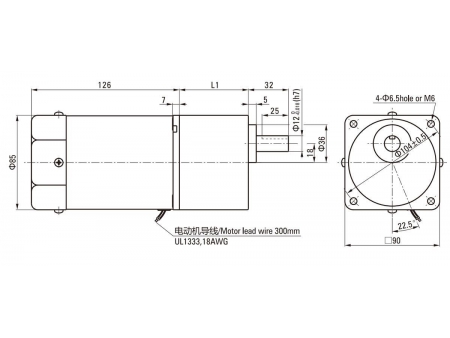

90mm 60W-GU

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5RK60GU-AF 5RK60GU-EF 5RK60GU-CF 5RK60GU-HF	5GU()KB 5GU()K	50Hz	1.10	1.40	1.90	2.30	2.90	3.40	3.61	4.80	5.70	6.80	7.12	8.60	10.0	10.3	11.6	12.4	15.5	18.6	20.0	20.0	20.0	20.0	20.0	20.0
5RK60GU-AF 5RK60GU-EF 5RK60GU-CF 5RK60GU-HF	5GU()KB 5GU()K	60Hz	0.92	1.10	1.50	1.80	2.30	2.80	3.01	3.80	4.60	5.50	5.73	6.90	8.30	8.30	9.70	10.0	12.5	15.0	18.8	20.0	20.0	20.0	20.0	20.0

L1=65.5mm

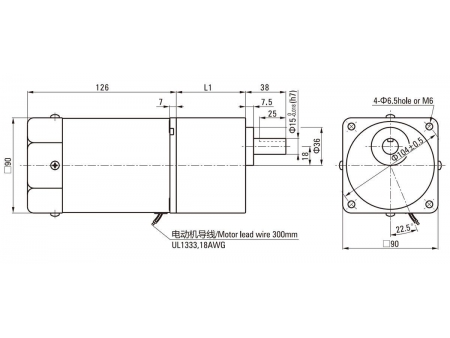

90mm 60W-GN

Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9

L1=60mm
