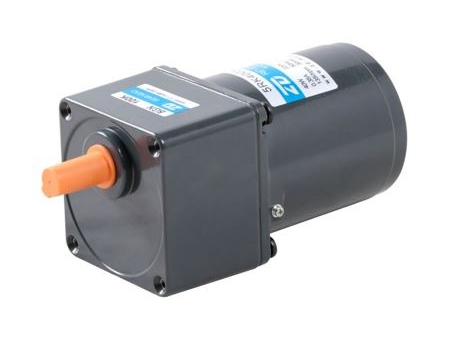

90mm 40W Reversible Motor
Request a Quote
Motor Specifications
| Model | Output Power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque m N.m | Rated Speed r/min | Capacitor μF |
| | 40 | 1ph 100 | 50 | 0.78 | 300 | 315 | 1250 | 15 |
| 60 | 1.05 | 260 | 1550 | |||||
| | 40 | 1ph 110 | 60 | 0.79 | 260 | 260 | 1550 | 12 |
| 1ph 120 | 0.80 | |||||||
| | 40 | 1ph 220 | 50 | 0.45 | 270 | 315 | 1250 | 3.0 |
| 1ph 230 | ||||||||
| | 40 | 1ph 220 | 60 | 0.45 | 270 | 260 | 1550 | 3.0 |
| 1ph 230 |
Gear Motor-Torque TableAllowance Torque Unit: N.m
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
| Speed r/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||

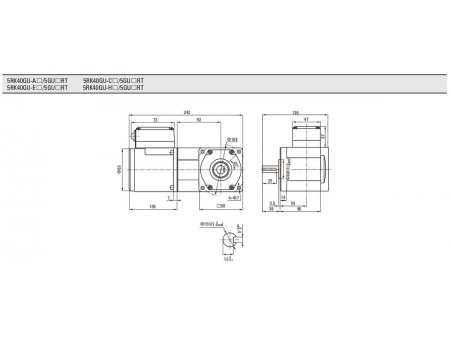

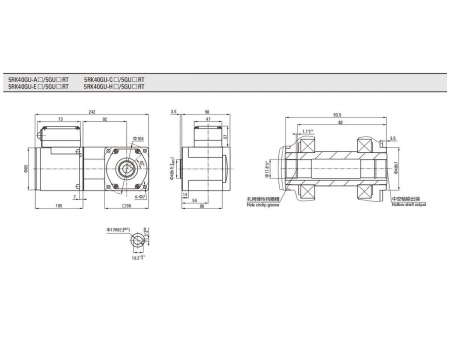

| 5RK40GU-A 5RK40GU-E 5RK40GU-C 5RK40GU-H | 5GU()RC 5GU()RT | Allowance Torque | 50Hz | 1.58 | 1.89 | 2.63 | 3.16 | 3.79 | 5.26 | 6.31 | 6.80 | 9.50 | 11.4 | 14.2 | 17.0 | 18.9 | 20.0 | 20.0 | 20.0 |
| 60Hz | 1.27 | 1.53 | 2.12 | 2.55 | 3.05 | 4.24 | 5.09 | 5.50 | 7.64 | 9.16 | 11.5 | 13.7 | 15.3 | 18.3 | 20.0 | 20.0 | |||
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 5RK40GN-A 5RK40GN-E 5RK40GN-C 5RK40GN-H | 5GN()K | 50Hz | 0.77 | 0.92 | 1.30 | 1.50 | 1.90 | 2.30 | 2.38 | 3.20 | 3.80 | 4.60 | 4.88 | 5.70 | 6.90 | 8.30 | 8.57 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 |
| 60Hz | 0.63 | 0.76 | 1.10 | 1.30 | 1.60 | 1.90 | 2.00 | 2.60 | 3.20 | 3.80 | 4.07 | 4.70 | 5.70 | 6.80 | 7.19 | 8.60 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | ||

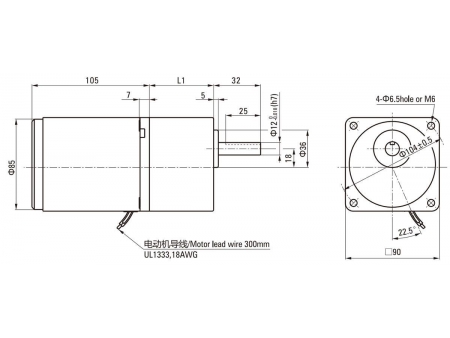

L1=60mmEstablished in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
