Request a Quote

Applications

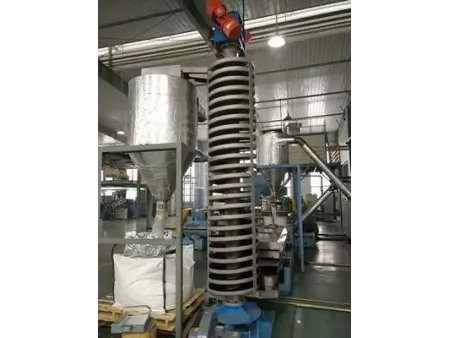

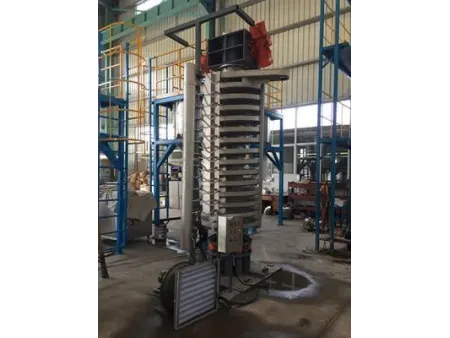

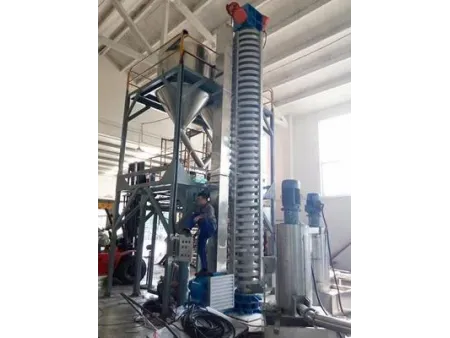

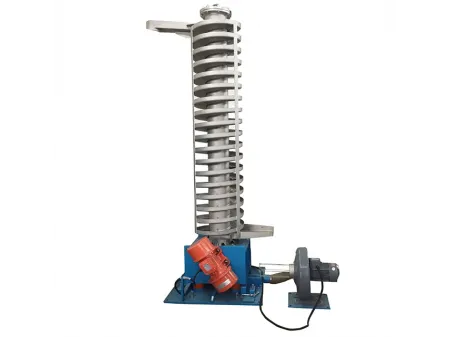

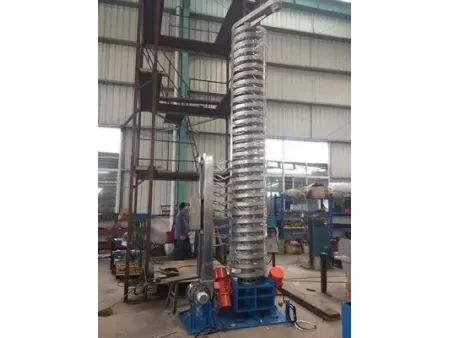

The air-cooling spiral vibrating conveyer uses its blower to dry and cool the material through its holes on its central column, which is suitable for the cooling and drying of high temperature materials in modified plastic production lines. We can provide vibrating conveyers with a throughput of 500-4000kg/h.

Material types
Vibrating spiral conveyors are standard equipment for many industries to elevate bulk materials. It can convey, dry and cool plastics granules, rubber granules, chemical and pharmaceutical intermediates, metal salts, welding powder, glass batch, catalysts, abrasives and ash as well as milk powder, powdered coffee, tea, nuts, nutrients and cereals.

Parameter
Model SCT05-30F SCT10-30F SCT20-30F SCT30-30F SCT30-70F
Nominal Throughput (kg/h) 500-600 800-1000 1000-2000 3000-4000 3000-5000
Diameter (mm) Ø600 Ø800 Ø1000 Ø1300 Ø1600
Inlet Height (mm) 600 640 700 700 700
Outlet Height (mm) 3000 3000 3000 3000 7000
Motor Power (kW) 0.55*2 1.1*2 1.7*2 2.3*2 6.2*2
Cooling Model Fan blow
Resident Time (min) 3-4 3-4 3-4 3-4 7-8
Features
  • The spiral vibrating conveyer cools the material by creating air flow from the center column. The longer the material flow passes, the better the cooling effect will be, because of its spiral structure.
  • The equipment is easy to operate and maintain.

Tags
bulk material handling equipment, lifting conveyor, vertical conveyor, granule conveying
