Applications
The vibrating pellet screener is an economical plastic particles vibrating classifier designed by Plastiger. We can supply customers with 300kg/h and 500kg/h screening efficiency machines to meet the screening needs of several modified plastic products.

Parameter
Grade TS-03 TS-05
Run Rate (kg/h) 300 500
Size (mm) 400*1200 500*1500
Inlet height (mm) 800 800
Outlet height (mm) 600 600
Motor power (kw) 30*2 40*2
Reciprocating Range (mm) 10 10

Operational Principle
The material vibrating classifier uses a vibrating motor to make the sieve surface to reciprocate smoothly and to realize the screening of materials, which is equipped with a single-layer screen structure.

Features
  • The structure is simple and durable.
  • It can be quickly and completely filtered in two minutes with a sieve plate structure.
  • The vibration is stable and the equipment noise is less than 65 db.
  • It adopts the high excitation force low power vibration motor, and the running cost of power consumption is significantly reduced.

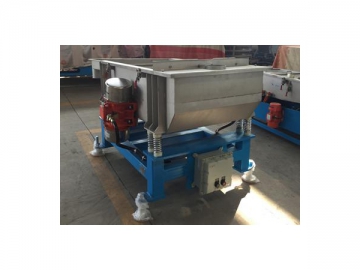

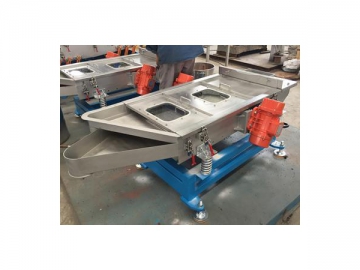

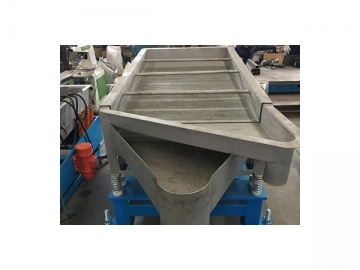

Gallery

Index
granule separation, vibrating classifier, sieving machine
