Electric Golf Cart

Request a Quote

View All: http://electrical-vehicles.com/1-3-passenger-electric-golf-cart.html

4 Forward Facing Seats 2 Rear Facing Seats

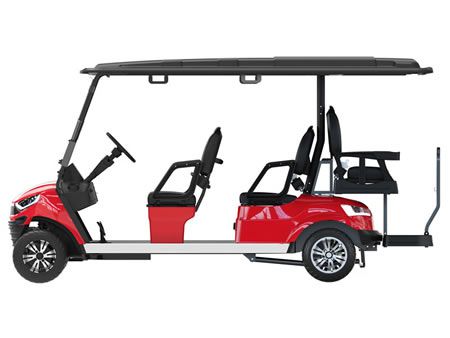

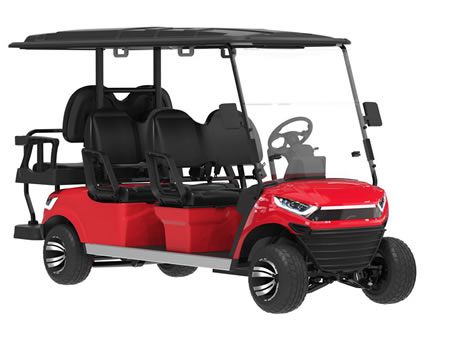

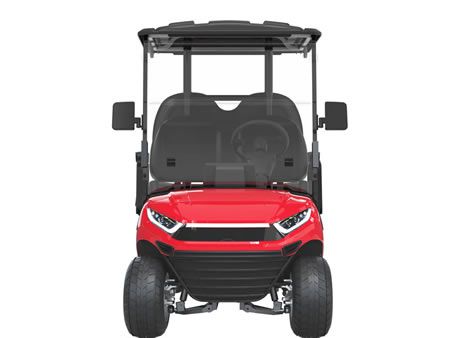

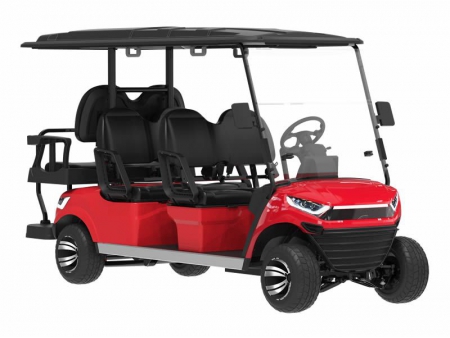

Introducing our 4 2 passenger electric golf cart - a car-like design with the comfort and entertainment functions of a golf cart.

This vehicle features an integral glass fiber reinforced plastic body with steel frame, which enhances safety, stability, and flexibility while driving. The anti-rust baking varnish on the micro-car chassis and the special toughened foldable front windshield with a wiper add to the durability of the vehicle. With a spacious 4 2 seat design, this golf cart is not only perfect for the golf course but also for tourism and hotel reception.

General Information

Motor
5kW(AC) HS motor
Maximum climbing ability
30%
Maximum speed
40km/h
Driving range
80-100km

Specifications

Model	YT-A2.4 2
Motor	48V/5kW AC
Overall dimensions (mm)	3685×1230×1905
Minimum ground clearance (mm)	120
Wheelbase (mm)	2470
Front track width (mm)	890
Rear track width (mm)	980
Key Parts
Battery	Lead-acid AGM battery 6pcs×8V150AH
Motor	5kW(AC) HS motor
Controller	48V450A FJ controller
Performance
Passenger capacity	6
Driving range at a speed of 25-30km/h	80-100km
Maximum speed	40km/h
Minimum turning radius	4.5m
Maximum climbing ability	30%
Braking distance	≤5.5m
Maximum carrying capacity	360kgs
Net weight	640kgs
Body and Frame
Frame	Steel frame electrophoretic and powder coating
Body	ABS plastic front body ABS plastic rear body
Roof	Injected plastic roof
Container Loading (Qty)
Cart quantity per 20’container	6
Cart quantity per 40HQ container	17

Features

Seat Structure

One of the standout features of this golf cart is the seat structure. The 4 2 design provides ample space for passengers and opens up the possibility for various usage scenarios beyond just golf courses, such as tourism and hotel reception. Passengers can flip the cushion and place their personal belongings into the hidden storage unit under the seat.
Dash Storage

The dash storage and other storage spaces greatly improve the practicality of the vehicle, making it a versatile choice for any situation.
LED Light

The 4 2 passenger electric golf cart is also equipped with a rich lighting system, including headlights, high beams, low beams, and LED tail lights. This feature ensures visibility and safety during night-time or low-light driving conditions.
Instrument Panel

The instrument panel on this golf cart is designed with the driver in mind. The center console layout provides an easy-to-use touch-button operation, making it simple for anyone to get behind the wheel and navigate the vehicle with ease.

Details

Tire
Safe Belt
Instrument Panel

Factory

Optional

Ice Bucket
Solar Panel
Sand Bucket
Bunker Rake
Rod Bucket
Golf Ball Washer
Wiper
Sun Shade
Rainproof Cloth
Active Subwoofer
Caddy Handrail
Front Shopping Basket
Trailer

At Guangdong Etong New Energy Technology, we're committed to creating a greener world through our innovative line of new energy vehicles.
