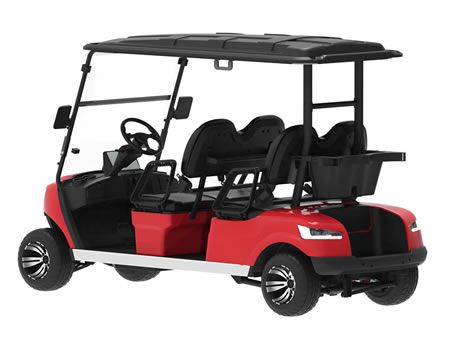

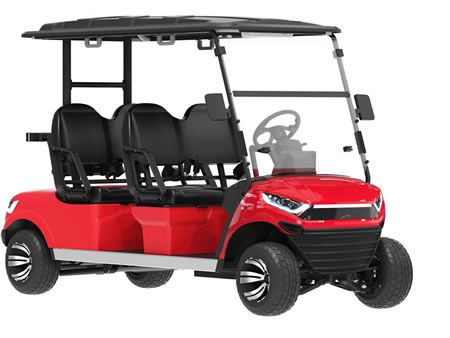

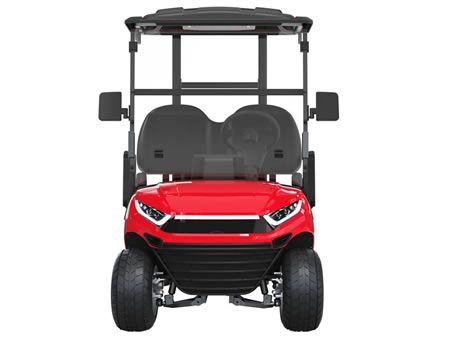

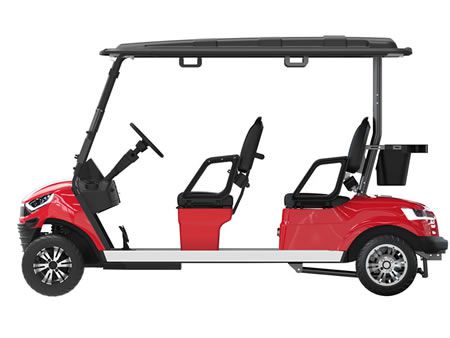

Electric Golf Cart

Request a Quote

View All: http://electrical-vehicles.com/1-4-passenger-electric-golf-cart.html

4 Forward Facing Seats

If you’re looking for a high-end golf cart that offers fast climbing and easy driving, look no further than our 4 passenger electric golf cart!

Equipped with American intelligent control system and AC electric drive system, this cart delivers both efficiency and power, making it perfect for golf courses, leisure clubs, tourist attractions, and internal transportation in large communities.

But that's not all - let's take a closer look at the features below that make this cart truly exceptional.

General Information

Motor
5kW(AC) HS motor
Maximum climbing ability
30%
Maximum speed
40km/h
Driving range
80-100km

Specifications

Model	YT-A2.4
Motor	48V/5kW AC
Overall dimensions (mm)	3205×1200×1910
Minimum ground clearance (mm)	120
Wheelbase (mm)	2470
Front track width (mm)	890
Rear track width (mm)	980
Key Parts
Battery	Lead-acid AGM battery 6pcs×8V150AH
Motor	5kW(AC) HS motor
Controller	48V450A FJ controller
Performance
Passenger capacity	4
Driving range at a speed of 25-30km/h	80-100km
Maximum speed	40km/h
Minimum turning radius	4.5m
Maximum climbing ability	30%
Braking distance	≤5.5m
Maximum carrying capacity	360kgs
Net weight	610kgs
Body and Frame
Frame	Steel frame electrophoretic and powder coating
Body	ABS plastic front body ABS plastic rear body
Roof	Injected plastic roof
Container Loading (Qty)
Cart quantity per 20’container	6
Cart quantity per 40HQ container	17

Features

Instrument Panel

With a clear digital control panel and a range of intelligent equipment including an electric door lock switch, combination instrument, ammeter, electricity meter, and car player, this cart makes driving and riding easy and convenient.
Wheel Tires

The dynamic large-size rim is made of aluminum alloy, providing both stability and style. Whether you're cruising around the golf course or exploring a new destination, you'll feel confident and in control.
Cart Steering Wheel

But it's not just the exterior that's impressive about the 4 passenger electric golf cart - the steering wheel is also designed for maximum comfort and flexibility. With an automatic gap adjustment and a well-matched trapezoidal structure, there's no dead angle in the rotation, making turning lighter and more agile.
Ceiling Speaker

For those who love to enjoy music on the go, the 4 passenger electric golf cart can be equipped with ceiling speakers. These speakers provide balanced sound throughout the interior of the vehicle, with amazing bass performance that's both powerful and rich in detail. No matter which seat you're in, you'll enjoy solid and favorable bass performance that makes your ride even more enjoyable.

Factory

Optional

Ice Bucket
Solar Panel
Sand Bucket
Bunker Rake
Rod Bucket
Golf Ball Washer
Wiper
Sun Shade
Rainproof Cloth
Active Subwoofer
Caddy Handrail
Front Shopping Basket
Trailer
