The plastic sheet extrusion line adopts PP colloidal particles as main raw materials and can produce PP sheet materials with thickness of 0.03-0.2mm. The width can be set according to your requirements.

Plastic sheet extrusion machine adopts a color screen interface and programmable controller. The slicing machine is controlled by microcomputer and servo motor, so the length and quantity of film sheet can be controlled precisely. This machine is suitable for use in plastic products factories, soft packaging products factories and stationery products factories.

The power consumption of producing every ton of sheet materials is 50%-60% of that of similar products, which shows the features of low energy consumption. And this machine has passed CE certification (Certificate number: 28407/475/C).

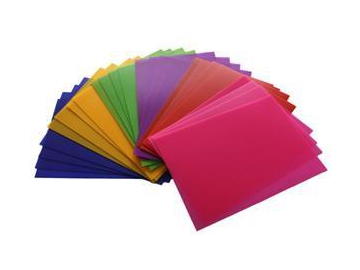

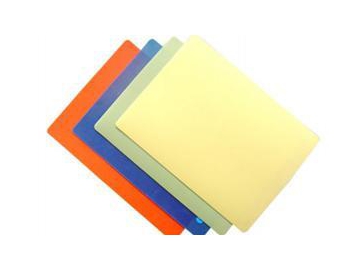

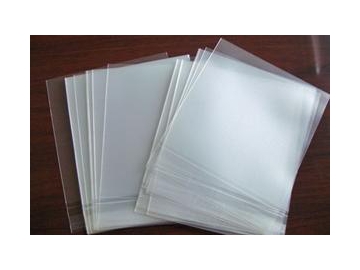

Finished products
Mechanical properties

The main engine of extruding machine can move backwards and forwards, which can increase operational safety.


Screw barrel adopts Italian design, which can increase plasticizing capacity. And it works in with static mixer imported from Europe, which makes the film color uniform and improves film quality.


T shape die head adopts American technology and is made in Taiwan. It can produce film sheets with uniform thickness.


It is equipped with an Italian gearbox, which gives this equipment good bearing capacity and wear resistant performance.


The SGR system is adopted to control temperature with temperature difference of 1℃, which can precisely control the plasticizing process, film thickness and film flatness.


The embossing roller, with diameter of 350mm, works with an air knife system and double circuit cooling system. It adopts microcomputer full-automatic temperature control system to precisely control the temperature of the embossing roller and cooling roller, realizing the flatness of film sheet and uniformity of thickness.


Slicing machine are controlled by microcomputer and servo motor, and the slicing speed can reach 15m/min.


Italian ROSSI reduction gearbox is used and the electronic control system adopts synchronous control so that the operation is safe and convenient.


Corona treater has different grades for customers to choose.


This plastic sheet extrusion line adopts trimming, slitting and leftover crushing recovery device, and it can recover all waste materials in time, which can reduce cost.


Technical parameters
Film Width MAX 1150mm
Extruding Capacity 60-230KG/HR
Screw Diameter 100(105)mm
Production Consumption 70KW
L/D Ratio 1:34
Power Supply 120KW
Effective Cutting Off Width MAX 1200MM
Space Require 5m×12m
Main Machine 5m×1.5m
Take-off Unit 2.4m×1.6m
Cutter 1.4m×1.5m
Net Weight 14.23T
Film Thickness Single roll:0.8-0.2mm
Double roll:0.35-1.6mm
Embossing parameters
Extruding Motor 75HP AC
Width of Embossing Roller 1300MM
Embossing Unit 1.3m×1.7m
Calender System Drive Transducer ACS550 2.2KW
Embossing Roller and Mirror Roller Motor 3HP(5HP)AC Synchronous speed regulation of frequency converter, with inverter
Optional equipment

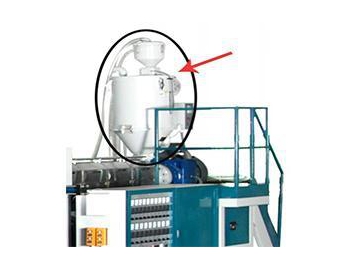

  • Automatic mixing dryer

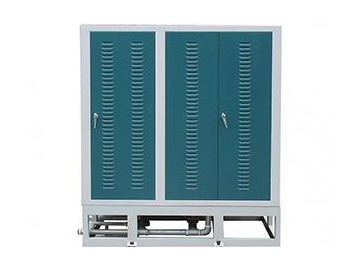

  • Water cooling unit

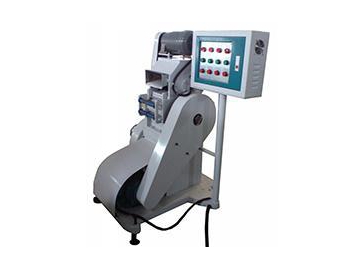

  • Waste film grinder
  • Granulator

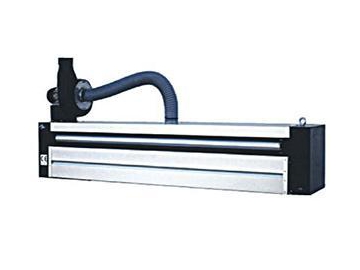

  • Corona treater

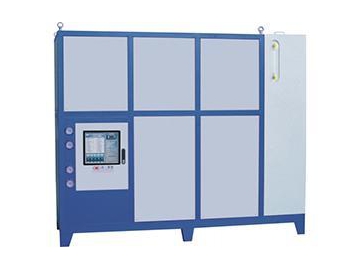

  • Thermostatic water tank
