Sliding Table Saw
Request a Quote
Sliding table saw is suitable for processing high density boards, particle boards, ABS panels, PVC panels, solid wood and other wood-based materials of similar structure and hardness.
Specifications
Sliding Table Saw, H90
| Sliding table size | 2800*380mm |
| Max. cutting length | 2800mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 90˚ |
| Main motor power | 4kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 2800*3440*900mm |
Sliding Table Saw, F90
| Sliding table size | 2800*380mm |
| Max. cutting length | 2800mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 90˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 2800*3490*900mm |
Sliding Table Saw, F90N
| Sliding table size | 3000*380mm |
| Max. cutting length | 3000mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 90˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3000*3490*900mm |

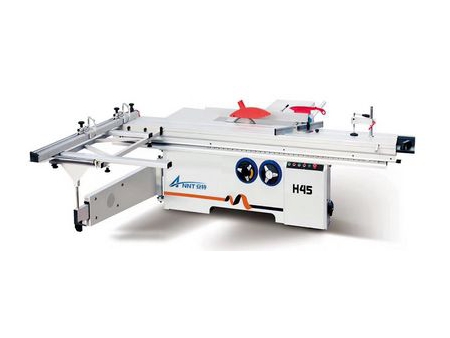

Sliding Table Saw, H45
| Sliding table size | 3000*380mm |
| Max. cutting length | 3000mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 0-45˚ |
| Main motor power | 4kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3000*3440*900mm |

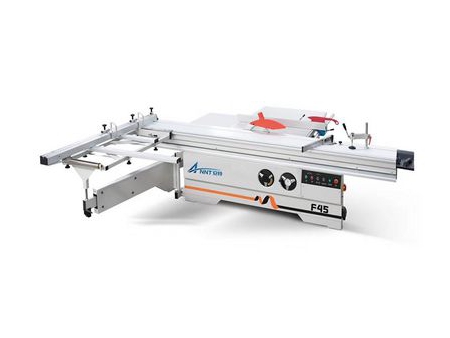

Sliding Table Saw, F45
| Sliding table size | 3200*425mm |
| Max. cutting length | 3200mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 0-45˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3200*3490*900mm |

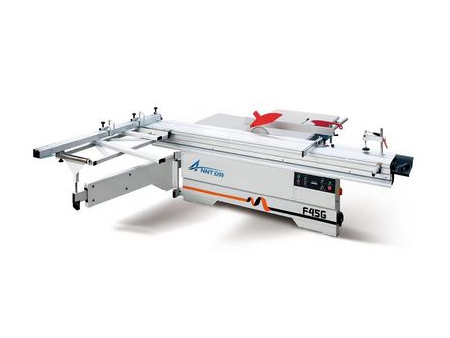

Sliding Table Saw, F45G
| Sliding table size | 3200*425mm |
| Max. cutting length | 3200mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 0-45˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3200*3490*900mm |

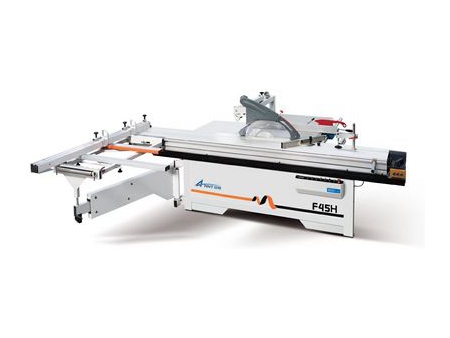

Sliding Table Saw, F45H
| Sliding table size | 3200*425mm |
| Max. cutting length | 3200mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 0-45˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3200*3490*900mm |

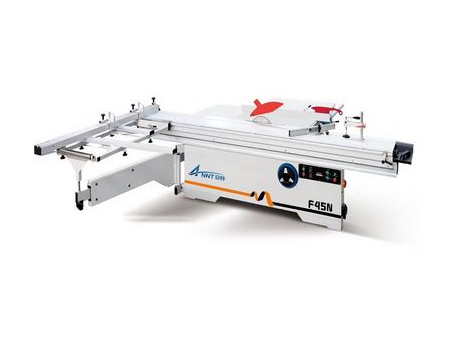

Sliding Table Saw, F45N
| Sliding table size | 3200*425mm |
| Max. cutting length | 3200mm |
| Max. cutting width | 1300mm |
| Main saw diameter | 300mm (250-400mm) |
| Max. cutting height | 75mm |
| Main saw speed | 4000-6000rpm/min |
| Main saw arbor diameter | 30mm |
| Sawing angle | 0-45˚ |
| Main motor power | 5.5kw |
| Scoring saw diameter | 120mm |
| Scoring saw speed | 7000-8000rpm/min |
| Auxiliary saw diameter | 200mm |
| Auxiliary motor power | 1.1kw |
| Overall dimension | 3200*3490*900mm |
