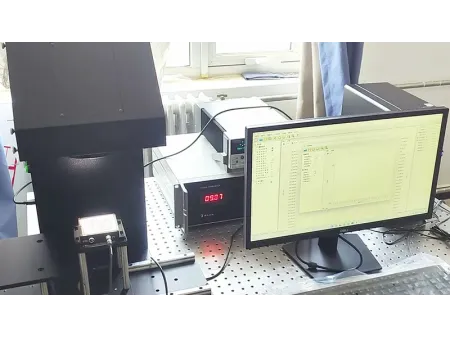

Solar Cell I-V Test System
Request a Quote
7-IV
Used for current-voltage (I-V) characterization of solar cells
The test of the I-V characteristics of solar cells refers to the relationship curve between the current output to the load and the voltage across the terminals under certain illumination. The I-V characteristics can fully reflect the conversion efficiency of solar cells, thus obtaining the final performance index of the solar cells, providing the basis for the production of components and determining the price.
SOFN offers a solar cell IV measurement system of scientific-grade quality, along with related equipment. These solar cell testing products are ideal for researching, testing, and evaluating various optoelectronic materials, photovoltaic components, and solar cells.
Features

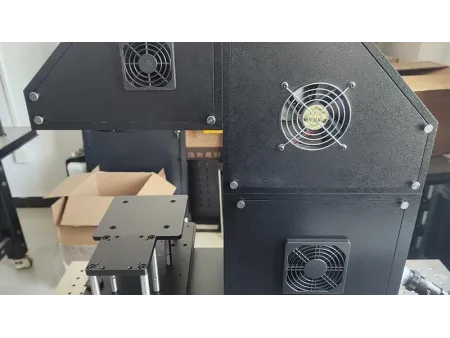

- Equipped with a reliable solar simulator graded AAA.

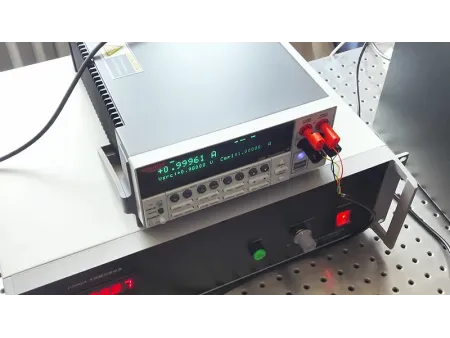

- Utilizes a specialized high-precision test source meter for accurate measurements.
- Includes a unique vacuum adsorption stage, with optional temperature control.
- Employs a dedicated high-precision test meter.

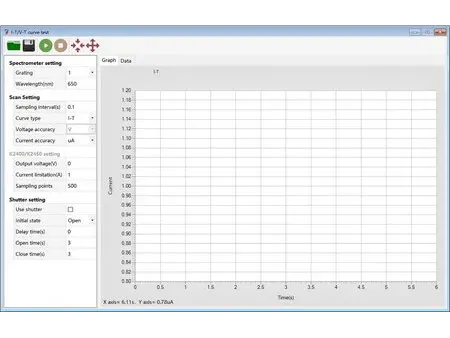

- Features independently developed IV test software for enhanced functionality.
Measurements Included

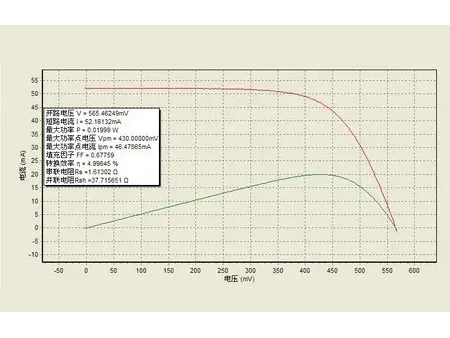

- The complete I-V curve and P-V curve measurement.
- Measurements of short-circuit current Isc, open circuit voltage Voc and short-circuit current density Jsc
- Measurements of peak power Pm, peak power current Im, peak power voltage Vm.
- Measurements of efficiency η, the fill factor FF, series resistance Rs and the shunt resistance Rsh
- Extended measurement capabilities, including measurements in weak light or dark conditions.
Specifications
- Accuracy of voltage measurement: 0.015%
- Accuracy of current measurement: 0.15%
- Repeatability of measurement: 1%
| IV tester model | Matched simulator model | Illumination area (mm) | Current measurement (A) | Voltage measurement (V) |
| | | 50×50 | 1.05 | 210 |
| | | 100×100 | 5.25 | 42 |
| | | 160×160 | 7 | 100 |
