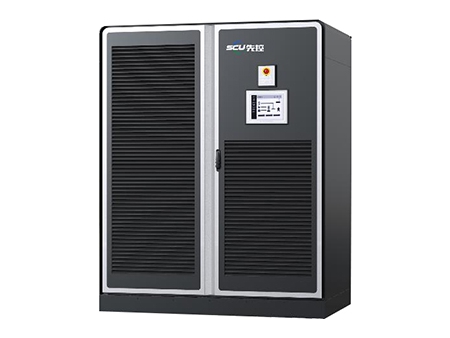

Hybrid Power Conversion System (PCS) with Solar Access

Hybrid Power Conversion System (PCS) with Solar Access
Hybrid Power Conversion System (PCS) with Solar Access
Hybrid Power Conversion System (PCS) with Solar Access
Hybrid Power Conversion System (PCS) with Solar Access
Request a Quote

Hybrid power conversion system (PCS) with solar access consists of PV control modules and bidirectional DC/AC converter. PV modules increase the voltage produced by solar panel for bidirectional AC/DC converter or to charge battery. The PV controller in PV modules will make full use of the maximum power point (or MMP) to give full play to solar power. Bidirectional AC / DC converter can achieve the power conversion between DC and AC. Furthermore, it can convert AC to DC to charge battery, and convert DC to AC to provide power to loads or back feed the grid. In addition, the hybrid power conversion system with solar access is easy for installation and maintenance.

System Design
Bidirectional AC/DC module

Bidirectional AC / DC converter can do the power conversion between DC and AC. Additionally, it can convert AC to DC to charge battery, and convert DC to AC to power to loads or back feed the grid.

Static Transfer Switch

Static Transfer Switch could be shifted within 10ms automatically. Under normal operating condition, the switch is on. When mains power fails, the switch would turn off and the battery system thus shifts to off-grid modes to power loads.

Monitoring System

The system monitors each individual battery cell and records its historical performance.

Maximum Power Point Tracking

PV modules increase the voltage produced by solar panel for bidirectional AC/DC converter or to charge battery. The PV controller in PV modules can make full use of the maximum power point (or,MMP) to give full play to solar power.

Features
  • Multiple modes: grid-connected, off-grid, or on and off-grid modes are available.
  • Three-level control technology ensures high-quality output of electricity.
  • Low voltage transform and reactive power compensation.
  • The micro-grid system composed of battery, energy storage inverter, PV solar panel could provide uninterruptible power supply.
  • 100% unbalanced load capacity in off-grid operation.
  • Continuous 105% rated output power.
  • Many power storage inverters can be connected in paralleled way to increase capacity of battery system.
  • AC or DC input is acceptable to keep the normal operation of battery system.
  • Modular design allows the flexible combination of power storage PCS.
Specifications
Model SPCS50 SPCS100 SPCS150
PV parameter MPPT voltage range DC200V~DC700V
MPPT full power Volt range DC370V~DC700V
MPPT channel Qty 1 2 3
Single channel maximum current 135A
Battery parameter voltage range DC580V~DC850V
Max charging/discharging current 85A 170A 255A
AC gridconnected parameters Output 3W N PE/3W PE
Rated power 50KW 100KW 150KW
Rated voltage AC 380V/400V
Rated current 75A 151A 227A
Voltage range -15%~ 10%
Rated frequency 50Hz/60Hz
Frequency range ±2Hz
Power factor range -0.9~ 0.9
Output harmonics ≤3%(nominal power)
AC off-grid parameters Output 3W N PE/3W PE
Rated power 50KW 100KW 150KW
Rated voltage AC 380V/400V
Rated frequency 50Hz/60Hz
Rated current 75A 151A 227A
Voltage accuracy 1%
Frequency accuracy ±0.2Hz
Output voltage harmonics 3%@ linear full load
Unbalanced load capacity 100%
Overload capacity 105%]: continuous operation; (105% ~ 120%]: 10min; 120%): stop operation
Environment Operating temperature -20℃~ 55℃(>45℃ derating)
Storage temperature -40℃~ 70℃(No batteries)
Optimal humidity 0% RH ~ 95% RH,No condensing
operating altitude 2000m;2000m ~ 4000m Derating
Noise <75dB
Others Communication CAN/RS485
Isolation Isolation transformer
Function On-off grid switching
Water/Dust Resistance Rating (IP) IP20
Cooling Air conditioning
Maximum efficiency 97.50%
Dimension W*D*H 600*1000*2000mm 1200*1000*2000mm 1400*1000*2000mm
Weight 550kg 750kg 850kg
