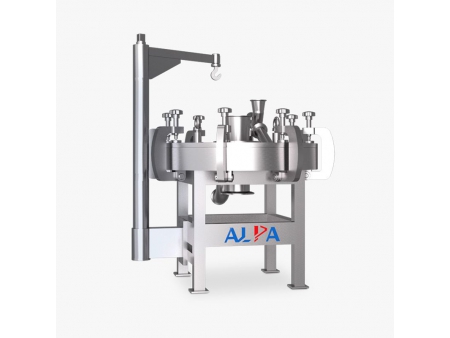

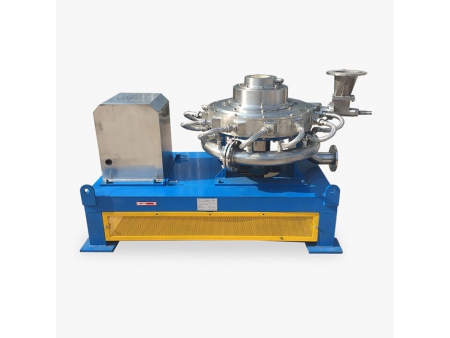

Spiral Jet Mill
Request a Quote
Ideal for dry grinding materials up to a Mohs hardness of 9
Ideal for dry grinding materials up to a Mohs hardness of 9
- Suitable for dry grinding of materials with a Mohs hardness < 9, especially those with high hardness, purity, and added-value
- Grinding without the aid of grinding media at constant or low temperatures, especially suitable for heat-sensitive materials with a low melting point, sugar, or volatility
- Available particle size between D50: 2 - 100 μm
- No rotating parts, easy to disassemble and clean
- Mill casing is made from one piece of steel plate by CNC processing without welding seams
- Easy Cleaning In Place (CIP) & Sterilization In Place (SIP)
How it works
The spiral jet mill utilizes compressed air to bring the raw materials into the grinding chamber via a feeding ejector. The high-speed airflow ejected by multiple nozzles propels the raw materials tangentially onto the grinding liner, resulting in friction-based grinding. To control the grinding fineness, you can adjust either the longitudinal depth of the grinding chamber, the pressure, or the feed speed; however, this is not as precise as a fluidized bed jet mill.
Technical Parameters
Parameter | MQP01 | MQP02 | MQP03 | MQP06 | MQP10 | MQP20 | MQP30 | MQP40 | MQP60 | MQP80 | MQP100 |
Feed size (mm) | < 1 | < 1 | < 1 | < 1 | < 1 | < 2 | < 2 | < 2 | < 2 | < 2 | < 2 |
Product size (D97:μm) | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 |
Production capacity (kg/h) | 0.02~0.1 | 1~10 | 5~30 | 10~20 | 50~500 | 100~800 | 200~1000 | 500~2000 | 1000~3000 | 4000~6000 | |
Air consumption (m³/min) | 1 | 3 | 6 | 10 | 20 | 30 | 40 | 60 | 80 | 100 | |
Air pressure (Mpa) | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 |
Nozzles | 5 | 4 | 6 | 6 | 8 | 12 | 16 |
Parameter | MQPW06 | MQPW10 | MQPW15 | MQPW20 | MQPW30 |
Feed size (mm) | < 2 | < 3 | < 3 | < 3 | < 3 |
Product size (D97:μm) | 8~150 | 8~150 | 8~150 | 10~150 | 10~150 |
Production capacity (kg/h) | 10~200 | 20~400 | 50~800 | 150~1500 | 300~2000 |
Air consumption (m³/min) | 6 | 10 | 15 | 20 | 30 |
Air pressure (Mpa) | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 | 0.7~0.85 |
Installed power (kW) | 30~37 | 65~85 | 85~100 | 120~142 | 175~200 |
Note: The particle size, specific gravity, hardness, and moisture of raw materials are all closely associated to the production capacity. These parameters should only be used as a reference; for more detailed information please consult our engineers.
