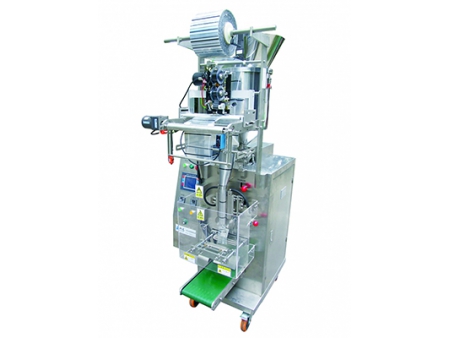

Vertical Form Fill Seal Machine (Piston Filling)
The vertical form fill seal machine (piston filling) is the combination of a piston pump system and main machine. It carries out film transport and tension, bag forming, filling, weighing, sealing, cutting, counting and other functions. It is suitable for packaging of liquid materials.
The following are the packaging machine types produced by Siyuan:
1) SYJ-240 3 side seal pouch/4 side seal pouch machinerySachet Type | 3 side seals/4 side seals |
Sachet Width | 30-120mm |
Sachet Length | 30-170mm |
Measurement Range | 0-100ml |
Speed | 40-60 sachets/minute |
Power Supply | 220V 50-60HZ |
Power | 1400W |
Net Weight | 200KG |
Dimension of the Machine | 800x1200x1700mm |
Sachet Type | 3 side seals /4 side seals/pillow pack |
Sachet Width | 30-150mm |
Sachet Length | 30-170mm |
Measurement Range | 1-150ml |
Speed | 40-60 sachets/minute |
Power Supply | 220V 50-60HZ |
Power | 1700W |
Net Weight | 250KG |
Dimension of the Machine | 920x1200x1700mm |
Applicable industry
The vertical form fill seal machine (piston filling) is suitable for packaging of liquid and paste products.
Liquid: alcohol, oil, soy sauce, vinegar etc.
Paste: shampoo, jam, facial cream, honey etc.
Package material
The vertical form fill seal machine (piston filling utilizes a variety of composite membrane types, including PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE

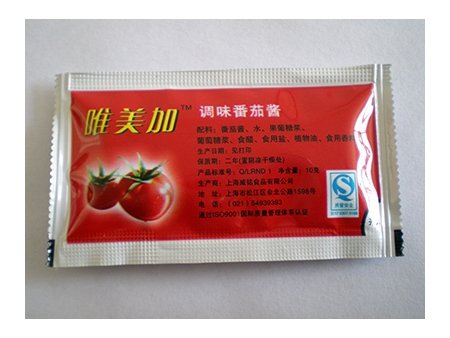

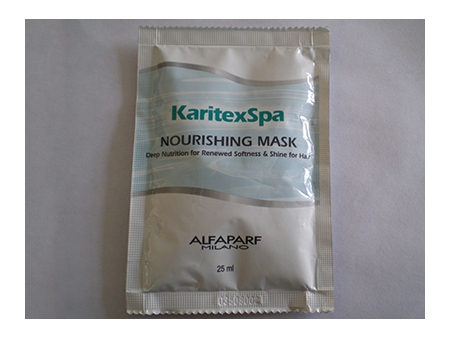

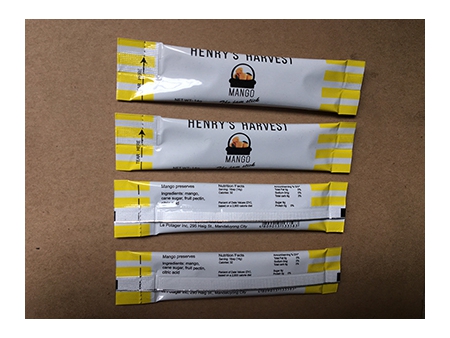

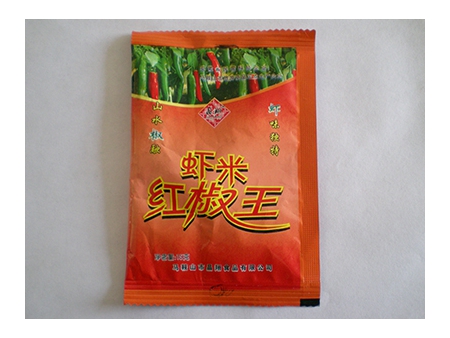

- 2 side seal pouch
- 3 side seal pouch
- 4 side seal pouch
- 4 side seal pouch
