The L-1060 CNC machining center adopts a box guideway for its Z-axis on the basis of linear guideways in X and Y axes. This enables the machined materials to move all around rapidly, thus improving working efficiency. This machining center’s travels in X, Y and Z axes are 100mm, 600mm and 600mm, respectively. Its workbench can load as many as 800kg materials at one time.

Parameters of L-1060 CNC machining center
Model L-1060
Stroke
X-axis travel (mm) 1000
Y-axis travel (mm) 600
Z-axis travel (mm) 600
Distance from spindle nose to table center (mm) 150-750
Distance between spindle center to column (mm) 600
Worktable
Worktable area (mm) 1200×600
Maximum weight on table (kg) 800
T-slot quantity 5
T-slot size (mm) 18
Spindle
Standard spindle speed (r.p.m) 8000
Spindle speed (non-standard) (rpm) 12000-15000
Spindle horsepower (KW) 15 (11)
Spindle taper BT-40
Feed
Triaxial rapid feed (mm/min) 30000/30000/18000
Triaxial cutting feed (mm/min) 1-8000
Others
Three-axis motor power (KW) 3/3/3
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 35
Air pressure (bar) 6-7
Machine weight (kg) 8000
Machine dimension (mm) 3310×2650×2900
Components display of CNC Vertical Machining Center (2 Linear Guide Way)

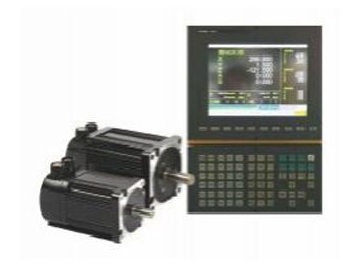

  • Control system and motor

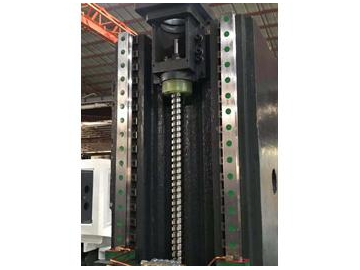

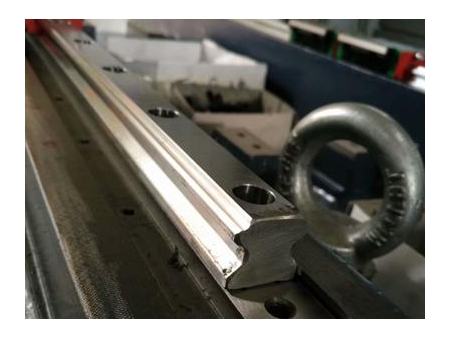

  • X axis and Y axis adopt linear guideway, and Z axis uses box guideway
  • X axis and Y axis adopt linear guideway, and Z axis uses box guideway

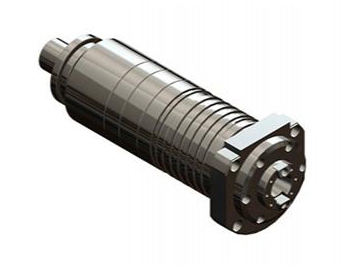

  • Mechanical spindle, direct drive

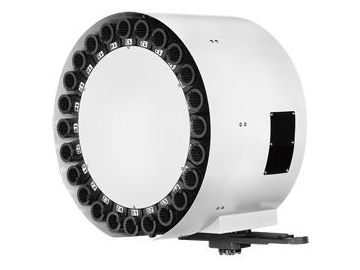

  • Turntable type tool magazine can hold 24 tools.
