VMC-1060 Vertical Machining Center (Box Way) Heavy Duty 3 Axis Machining Center
Request a Quote
The heavy duty 3 axis machining center is applicable to the rough processing and mold manufacturing of products. And it is especially suitable for cutting. Its X-axis, Y-axis and Z-axis travel is 1000nm, 600nm and 600nm, respectively. The machine size is 3300×2700×2650mm and weight is 4200kg.
Parameters| Model | VMC-1060 |
| Stroke | |
| X-axis travel (mm) | 1000 |
| Y-axis travel (mm) | 600 |
| Z-axis travel (mm) | 600 |
| Distance from spindle nose to table center (mm) | 140-740 |
| Distance between spindle center to column (mm) | 690 |
| Worktable | |
| Worktable area (mm) | 1300×600 |
| Maximum weight on table (kg) | 900 |
| T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) | 18-5×110 |
| Spindle | |
| Standard spindle speed (r.p.m) | 8000 |
| Spindle horsepower (KW) | 15 (11) |
| Spindle taper | BT40φ150 (belt drive) |
| Feed | |
| X、Y-axis rapid feed (mm/min) | 18000 |
| Z-axis rapid feed (mm/min) | 15000 |
| Triaxial cutting feed (mm/min) | 1-8000 |
| Others | |
| Three-axis motor power (KW) | 3.0/3.0/3.0 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 1/2 |
| Power requirement (KVA) | 20 |
| Air pressure (bar) | 6-7 |
| Machine weight (kg) | 4200 |
| Machine dimension (mm) | 3300×2700×2650 |
- Turntable type tool magazine, holding 24 tools.

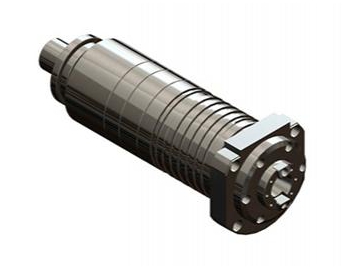

- Mechanical spindle, direct drive

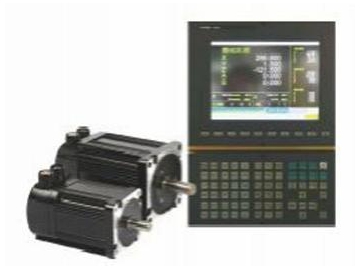

- Control system and motor

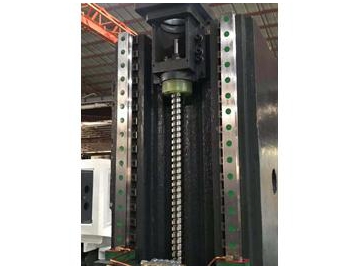

- Box guideway
