Neon (Ne)

Request a Quote

Website: http://industrial-gases.com/3-3-neon-ne.html

Rare Gas

Neon is a colorless, odorless, and non-flammable rare gas. It is widely used in neon signs for outdoor advertising displays, providing vibrant colors. Additionally, neon is used in luminous indicator lamps, voltage regulators, and as a component in laser gas mixtures. Neon can also be used to fill glass products to enhance their performance or functionality.

Specifications

CAS No.: 7440-01-9

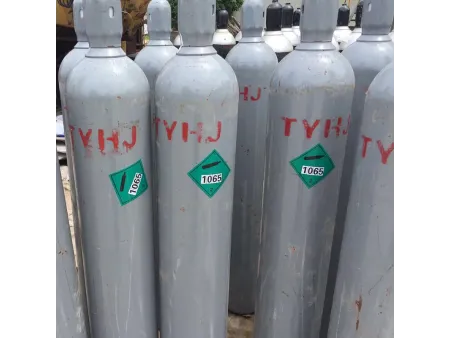

UN No.: 1065
EINECS No.: 231-110-9
Molecular Weight: 20.1797(6) g/mol
Appearance: Colorless, odorless
Melting Point: -248.6 ℃
Boiling Point: - 245.9℃
Density: 0.9002 g/L
Hazard Class (DOT): 2.2
Label: Non-flammable gas

Applications

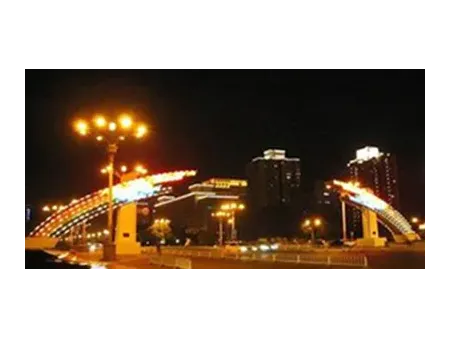

Lighting
Neon is used in neon signs, high-voltage neon lamps, and counters as a fill gas in the electronics industry.

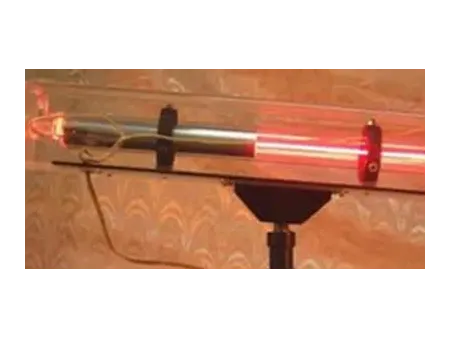

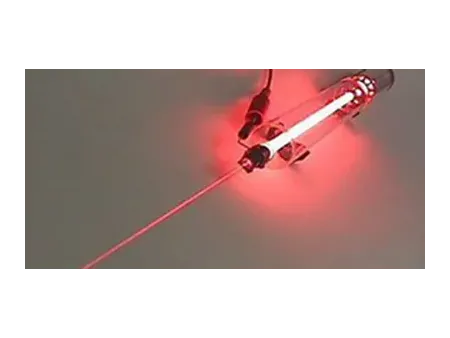

Gas Laser
Neon is utilized in voltage regulation and as a component in laser gas mixtures.

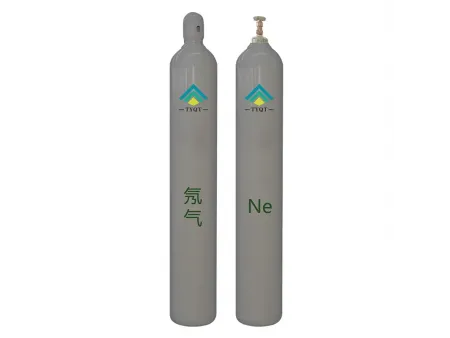

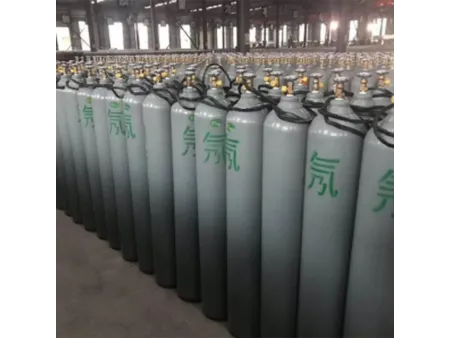

Packaging

Gas Cylinder Specifications		Contents	Pressure
Cylinder Capacity	Cylinder Valve	Volume	Bar	PSIG
40L	CGA580	6m³	150	2175
47L	CGA580	7m³	150	2175
50L	CGA580	10m³	200	2900

High Purity Neon (Ne) 99.999%

Purity	99.999%
Helium (He)	≤ 3.0ppm
Hydrogen (H₂)	≤ 1.0ppm
Oxygen (O₂) Argon Gas (Ar)	≤ 1.0ppm
Nitrogen (N₂)	≤ 1.0ppm
Methane (CH₄)	≤ 0.1ppm
Carbon Monoxide	≤ 1.0ppm
Carbon Dioxide (CO₂)	≤ 1.0ppm
Moisture	≤ 2.0ppm
