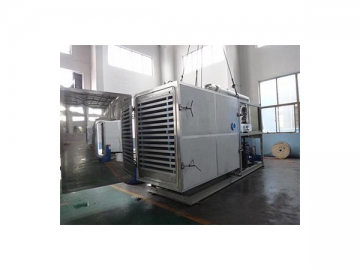

BLK200kg Industrial Freeze Dryer
Request a Quote
Application
The BLK200kg industrial freeze dryer features a capacity of 200kg and effective freeze-drying area of 20m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemical materials and liquid food.
We can customize the capacity and configurations of the BLK200kg industrial freeze dryer.
Freeze drying effect pictures
Parameters
| Model | BLK200kg |
| Shape and Size | Square 5200*1800*3000mm |
| Installed Power | 38kw- actual usage is generally between 60 to 80% of the full power, i.e, 22-30kW. |
| Tray's Area | 20.02m2 |
| Shelf | 15 |
| Cold Trap Temperature | -45℃~-60℃ |
| Vacuum Degree | ≥1Pa |
| Heating way | silicone oil Electric heating |
| Capacity | 200KG |
* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.
Features of BLK200kg industrial freeze dryer
- Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
- It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
- High automation degree: a single operator can operate multiple devices, saving labor costs.
- The waste heat recovery system developed in house is used, saving operation costs.
Details

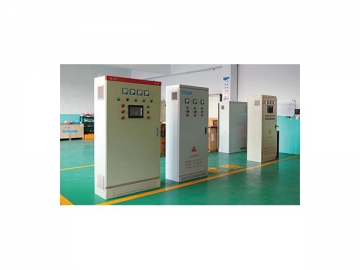

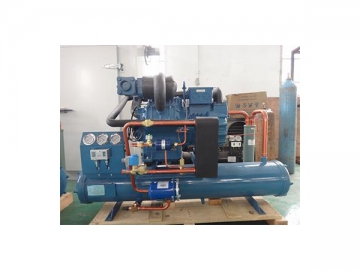

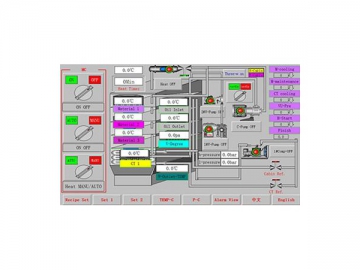

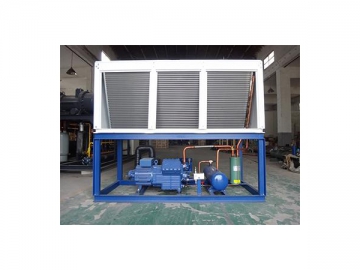

Compressor: compressor brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.- SIEMENS, Schneider electrical components and PLC automatic control are used. All are controlled by a touch screen or computer, and are easy to operate.
- All devices can be controlled manually and automatically on screen.
- Fault-alarming function
