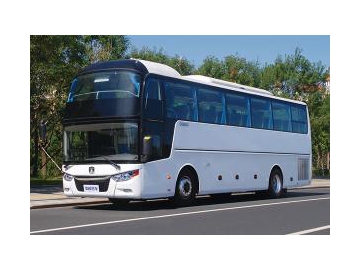

LCK6120A Coach (Compass)
Request a Quote
This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.
| Overall specification | overall dimension (mm) | 11450 | Engine | engine model | L325 20 | ||
| overall width (mm) | 2550 | manufacturer | Cummins (China) | ||||
| overall height (mm) | 3850 | engine position | Front | ||||
| body inside height (mm) | 1940 | engine type | 6 cylinders in-line, turbocharged with intercooler | ||||
| wheel base (mm) | 5800 | max power (kw) | 239 | ||||
| front/rear overhang (mm) | 2340/3310 | max torque (N.M) | 1350 | ||||
| approach/departure (º) | 9/13 | displacement (l) | 8.9 | ||||
| first step height (mm) | 480 | bore/stroke mm | 114X144.5 | ||||
| max g.v.w. (kg) | 18000 | fuel | |||||
| seats capacity (person) | 60 1/ 51 1 | steering position | |||||
| max speed km/h | 120 | ||||||
| luggage cabin m3 | 8 | ||||||
| Item | Standard | Optional | |||||
| Chassis specification | manufacturer | made in Zhongtong | |||||
| gear box | S6-160, ZF technology, six gears | ||||||
| clutch | coil spring, Ø430 | ||||||
| front axle | 7.5t front axle | ||||||
| rear axle | 13t third axle | ||||||
| suspension | multi-leaf spring suspension | ||||||
| steering | integral assistant power steering | ||||||
| brake | dual circuit air braking, drum brake | ||||||
| fuel tank | 400L 400L | ||||||
| tyre | 315/80R22.5 double coin | ||||||
| battery /dynamo | 2×12V/195Ah / 28V /150A 140A | ||||||
| others | brake slack auto adjuster, electric retarder, ABS | ||||||
| seat | fixing type cloth seatsztzy3072, 3 2 layout 60 1, or 2 2 layout 51 1, driver seat ztzy1050 | ||||||
