Portable Field Balancer

Request a Quote

Website: http://balancingmachine-en.com/1-4-5-portable-field-balancer.html

ZL-2X

Portable field balancing tool with touch screen for single-plane and two-plane rotor balancing at rotational speed up to 5000r/min

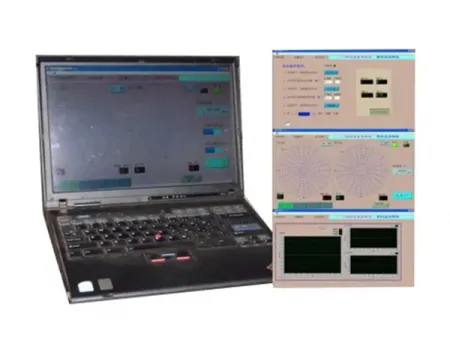

These portable field balancers with touch-screen operation combine a portable computer platform with LABview programming software from National Semiconductor, creating a flexible and efficient rotor balancing system. The modular and easy-to-use design allows both single-plane and two-plane balancing to be performed within the same system, so different balancing needs can be handled without switching between setups. This makes them adaptable for a wide range of on-site applications where different types of rotating components require specific balancing solutions.

Applications

Mainly used for balancing fans, motors, machine tool spindles, pumps, grinding wheels, and other rotating machinery on-site.

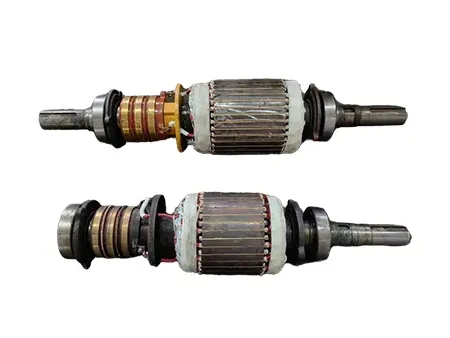

Motor rotors
Pump rotors

Features

Can be used for single-plane and two-plane balancing of rotating parts that are not easy to dismantle.
Simple to operate: users just follow the on-screen guidance to complete the balancing process.
Built-in spectrum analysis function provides power spectra, waveform graphs, and other data for more detailed evaluation.
Main interface combines polar coordinate and numerical displays, giving users a clear and intuitive view that adapts to different habits.
Measurement data can be stored, retrieved, and printed at any time.
Covers a balancing speed range from 180 r/min to 5,000 r/min.
Delivers high accuracy, with residual unbalance reaching ≤1 μ and single correction efficiency above 90%.
