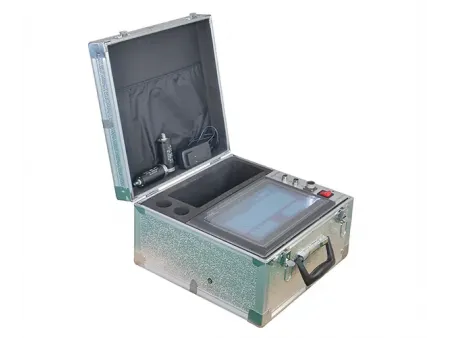

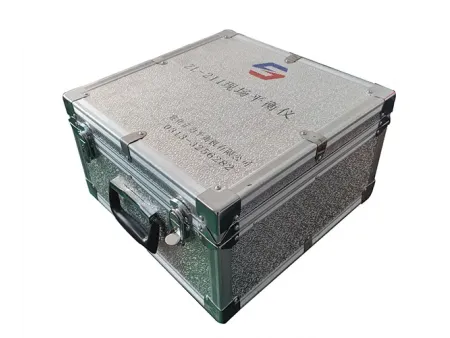

Portable Field Balancer

Request a Quote

Website: http://balancingmachine-en.com/1-4-1-portable-field-balancer.html

ZL-211

Portable field balancing tool with touch screen for single-plane and two-plane rotor balancing at rotation speed up to 6000r/min

Portable field balancer with a touch-screen interface supports single- and two-plane correction. Compared with conventional field balancers compact and easy to carry, and no external drive is required. Measurements are taken on the installed rotor while running. Using the influence-coefficient method for calibration, the software calculates the correction mass and angle and guides add/remove weighting. Only a speed input and two vibration inputs are needed; connections are simple and there are effectively no space constraints.

Applications

Portable field balancers are commonly used for on-site dynamic balancing of fan rotors, motor rotors, and crushers. They are also suitable for direct balancing checks on installed motors.

Motor rotors

Specifications

Model	ZL-211 Field Balancer with Touch Screen
Duration of balancing	4-10s
Display range	1μg-999kg
Balancing method	Possible to select between single plane and two planes
Dimensions	350×350×205mm
Vibration sensor	2 sets
Balancing speed	180-6000r/min
Unbalance resolution	0-3 decimal points
Min. achievable residual unbalance (eMar)	≤10g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Software processes the measurement data and quickly calculates the correction mass and angle, guiding the user step by step through the balancing process.
Real-time measurement data can be printed in full whenever needed.
Calibration relies on the influence-coefficient method, to ensure a simple and user-friendly operation.
Supports both single-plane and two-plane balancing, depending on rotor requirements.
