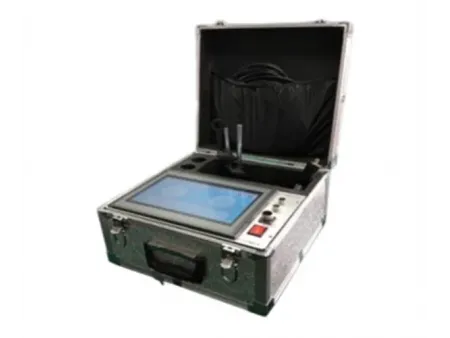

ZL-212

Portable field balancing tool with touch screen for single-plane and two-plane rotor balancing at rotational speed up to 20000r/min

These portable field balancers use a touch-screen interface and are built for high-speed work, handling rotor balancing at up to 20,000 r/min. They have a compact, lightweight structure that is easy to carry, which makes them practical for on-site use without external drive power. During operation, they read speed and vibration signals and apply the influence-coefficient method to work out the correction mass and angle automatically. Setting these balancers is simple, with no space restrictions, and they can be used for both single-plane and two-plane balancing depending on the rotor.

Applications

Widely used for on-site dynamic balancing of fans, motors, impellers, spindles, and other rotating components.

On-site dynamic balancing of motors

Specifications

Model	ZL-212 Field Balancer with Touch Screen (optional 6000mA rechargeable type)
Duration of balancing	4-10s
Display range	1μg-999kg
Balancing method	Possible to select between single plane and two planes
Dimensions	350×350×205mm
Vibration sensor	2 sets
Balancing speed	180-20000r/min
Unbalance resolution	0-3 decimal points
Min. achievable residual unbalance (eMar)	≤10g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

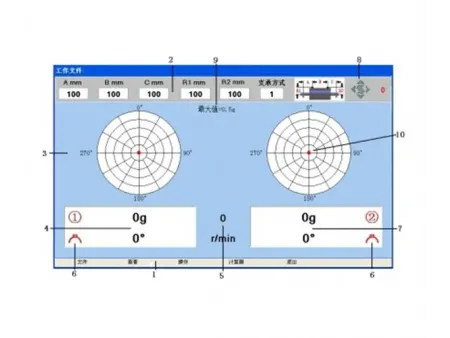

Software processes measurement data and quickly calculates the correction mass and angle, guiding users step by step through the balancing process.
Software processes measurement data and quickly calculates the correction mass and angle, guiding users step by step through the balancing process.
Real-time measurement data can be printed in full whenever needed.
