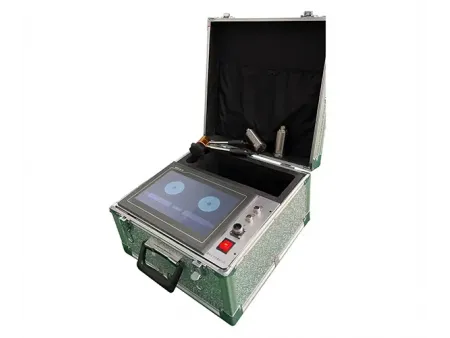

ZL-213

Portable field balancing tool with touch screen for single-plane and two-plane rotor balancing at rotational speed up to 40000r/min

These portable field balancers are built for versatility and precision, handling rotor speeds up to 40,000 r/min. They support both single-plane and two-plane balancing and are compatible with soft- and hard-bearing balancing systems. Connections are simple, with flexibility to work with different speed sensors, vibration sensors, and piezoelectric options. They portable field balancing machines feature high efficiency, reliable data, and can output results through standard interfaces for easy integration.

Applications

Suitable for on-site dynamic balancing of high-speed motors, motor spindles, and turbocharger assemblies. They can also be used for direct balancing checks on motors.

Motors

Specifications

Model	ZL-213 Field Balancer with Touch Screen
Duration of balancing	4-10s
Display range	1μg-999kg
Balancing method	Possible to select between single plane and two planes
Dimensions	350×350×205mm
Vibration sensor	2 sets
Balancing speed	200-40000r/min
Unbalance resolution	0-3 decimal points
Min. achievable residual unbalance (eMar)	≤1g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Suitable for rotor speeds up to 40,000 r/min with precision down to 10 mg

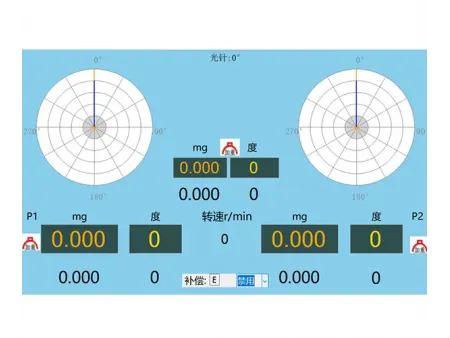

Operated through a 10.2-inch MCGS touch screen with an industrial control platform and built-in WinCE system
Offers a clear 4:3 display (1024×768 resolution) for easy data reading
Supports both single-plane and two-plane balancing, with unlimited record storage
Provides waveform display for speed and vibration signals, plus indexing and real-time static balance display
