CNC Wood Cutting Machine
Request a Quote
//Woodworking Machinery

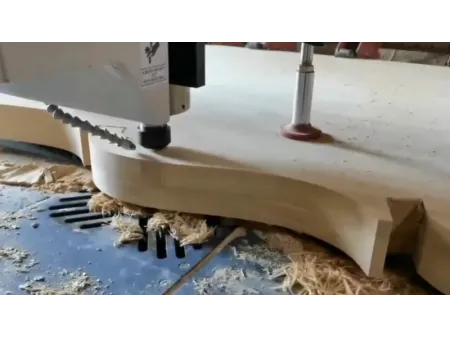

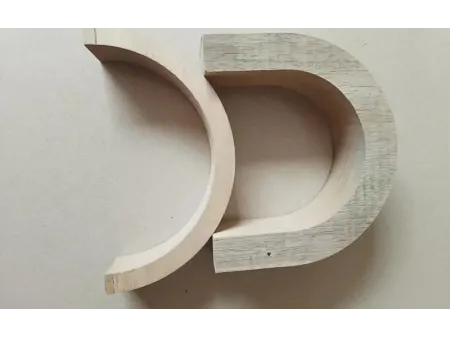

Multi-head CNC wood cutter for cutting, drilling and engraving of complex wood furniture components
Configurations
| System | Custom System |
| Guide rail | ROUST Germany |
| Ball screw | Taiwan HIWIN |
| Servo drive system | Inovance (full set) |
| Electrical components | Schneider Electric |
| Inverter | Folinn |
| Spindle motor | Shenyi Motor (upper and lower spindle) |
| Machine body | Welded steel structure with heat treated |
| Computer | Industrial integrated computer |
Specifications
| Model | 1500A | 2500A |
| Machine dimensions (L×W×H) | 2300×2800×1600mm | 3400×2800×1600mm |
| Machine weight | 2000kg | 3000kg |
| Max. working diameter | 500mm | 500mm |
| Max. material length | 1500mm | 2500mm |
| Max. material width | 1300mm | 1300mm |
| Max. material thickness | 130mm | 130mm |
| Idle speed | 0-15m/min | 0-15m/min |
| Working speed | 0-12m/min | 0-12m/min |
| Total power | 20kW | 20kW |
| Spindle power | 12.7kW | 12.7kW |
| Spindle speed | 10000rpm-18000rpm | 10000rpm-18000rpm |
| Working voltage | 380V | 380V |
| Working air pressure | 0.6Mpa | 0.6Mpa |
Features:
- Our CNC wood cutting machine is equipped with a high-output spindle that delivers stable cutting performance and a long service life, ensuring reliable operation across a variety of applications.
- Large-torque servo motors reduce noise, improve movement speed, and maintain precise positioning for consistent results.
- A robust rack-and-pinion drive system combined with German ROUST square linear guides provides smooth motion and high transmission accuracy, even during continuous, high-load production.
