Request a Quote
Samples
Applications
Technical Data
Model
Model MXK-1625 MXK-1620 MXK-1615 MXK-1212
Working area (mm) 2500*1450*140 2000*1450*140 1500*1450*140 1200*1250*140
Working speed 0-10m/min 0-10m/min 0-10m/min 0-10m/min
Milling cutter diameter 6-10mm 6-10mm 6-10mm 6-10mm
Cutting motor 7.5KW*2 7.5KW*2 7.5KW*2 7.5KW*2
Spindle rotation speed 0-18000m/min 0-18000m/min 0-18000m/min 0-18000m/min
X-axis servo motor 2.3kw 2.3kw 2.3kw 2.0kw
Y-axis servo motor 2kw 1.5kw 1.5kw 1.5kw
Z1/Z2 axes servo motor 1.5kw 1.5kw 1.5kw 1.5kw
Weight 4300kg 3500kg 3000kg 2600kg
Dimension (mm) 5200*2700*2000 4200*2700*2000 3200*2700*2000 2600*2700*2000

  • Working area (mm): 2500*1450*140
  • Working speed: 0-10m/min
  • Milling cutter diameter: 6-10mm
  • Cutting motor: 7.5KW*2
  • Spindle rotation speed: 0-18000m/min
  • X-axis servo motor: 2.3kw
  • Y-axis servo motor: 2kw
  • Z1/Z2 axes servo motor: 1.5kw
  • Weight: 4300kg
  • Dimension (mm): 5200*2700*2000

  • Working area (mm): 2000*1450*140
  • Working speed: 0-10m/min
  • Milling cutter diameter: 6-10mm
  • Cutting motor: 7.5KW*2
  • Spindle rotation speed: 0-18000m/min
  • X-axis servo motor: 2.3kw
  • Y-axis servo motor: 1.5kw
  • Z1/Z2 axes servo motor: 1.5kw
  • Weight: 3500kg
  • Dimension (mm): 4200*2700*2000

  • Working area (mm): 1500*1450*140
  • Working speed: 0-10m/min
  • Milling cutter diameter: 6-10mm
  • Cutting motor: 7.5KW*2
  • Spindle rotation speed: 0-18000m/min
  • X-axis servo motor: 2.3kw
  • Y-axis servo motor: 1.5kw
  • Z1/Z2 axes servo motor: 1.5kw
  • Weight: 3000kg
  • Dimension (mm): 3200*2700*2000

  • Working area (mm): 1200*1250*140
  • Working speed: 0-10m/min
  • Milling cutter diameter: 6-10mm
  • Cutting motor: 7.5KW*2
  • Spindle rotation speed: 0-18000m/min
  • X-axis servo motor: 2.0kw
  • Y-axis servo motor: 1.5kw
  • Z1/Z2 axes servo motor: 1.5kw
  • Weight: 2600kg
  • Dimension (mm): 2600*2700*2000

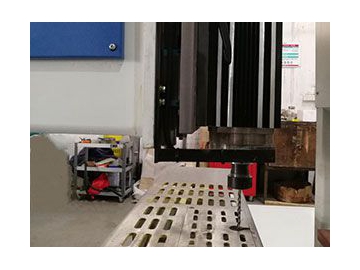

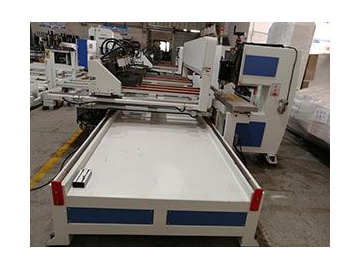

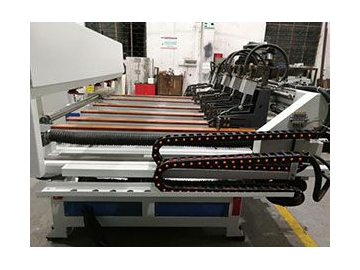

This CNC router is designed with double edged tungsten steel straight slot milling cutter to cut wood materials for creating various complex shapes, suitable for processing European style sofa, chair, headboard and other different types of solid wood furniture. CNC control system ensures that the cutter precisely follows a path that has been programmed, it can provide a smooth surface finish of wood material for direct sanding, thus greatly reducing labor cost.

Features

Replacing the traditional processing, this CNC solid wood cutting machine requires only one person to do the job. It adopts CNC control system for easy operation, enabling the sanding and polishing processes to be easily carried out and providing a smooth processing effect. Any shapes can be cut according to the program setting. CAD drawing and typesetting will reduce the waste to the minimum, which can save a lot of costs. Fast cutting, and high efficiency will be guaranteed.

  • Advanced CNC control system creates cutting path by directly importing CAD design into operation software.

  • High performance servo motor is adopted for quick respond and high work efficiency.

  • 7.5kw spindle features high rotation speed of 18000r/min, it is able to effortlessly cut panel with thickness of 14cm.
