Automatic Meat Forming, Battering & Breading Line
Request a Quote
Meat Forming Equipment → Battering Machine → Breading Machine
Automatic meat forming, battering and breading line can handle filling, forming, and discharging in a fully automated process. It produces meat patties in various shapes, suitable for a wide range of raw materials such as fish, beef, pork, chicken, and vegetables. By changing molds, it can form patties into different shapes including round, square, oval, triangular, heart-shaped, and more.
Applications
-
- Chicken Nuggets
-
- Onion Rings
-
- Burger Patties
Equipment Used in the Meat Processing Line
- Forming Machine
- Battering Machine
- Breading Machine
Forming Machine Specifications
| Output | 15–34 cycles/min |
| Hopper capacity | 45 L |
| Power | 0.12 kW |
| Conveyor width | 200-230 mm |
| Mold width | 240 mm |
| Power supply (customizable) | 380 V, 50 Hz |
| Product thickness | 6-35 mm |
| Feeding method | Twin-screw feeder |
| Production capacity | 70-180 kg |
| Product filling range | 180 × 140 mm (W × H) |
| Max product diameter | ≤140 mm |
| Dimensions | 2150 × 650 × 1650 mm |
Battering Machine Specifications
| Model | |
| Conveyor width | 600 mm |
| Conveyor speed | 3-15 m/min |
| Infeed/outfeed height | 950 ± 50 mm |
| Rated power | 2.65 kW |
| Dimensions | 2080 × 1200 × 1450 mm |

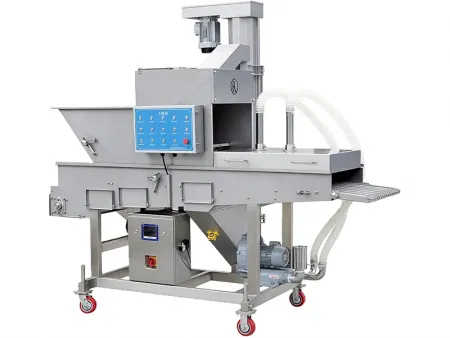

Breading Machine Specifications
| Model | |
| Conveyor speed | 3-18 m/min |
| Infeed height | 870-970 mm |
| Outfeed height | 1000 ± 50 mm |
| Power | 3.7 kW |
| Conveyor width | 600 mm |
| Dimensions | 2640 × 1060 × 2240 mm |
Features
- Feeding inlet For low-flow materials such as minced meat or dough, twin-screw augers ensure uniform and continuous feeding, preventing material blockage or accumulation.
- Battering machine Splash guard installed at the feeding edge prevent batter splashing during loading.
- Construction All machines are made of food-grade 304 stainless steel, providing corrosion resistance, compliance with food hygiene standards, and easy cleaning.
