Meat Processing Bone-in meat cutter for the automatic cutting of fresh and frozen bone-in meat

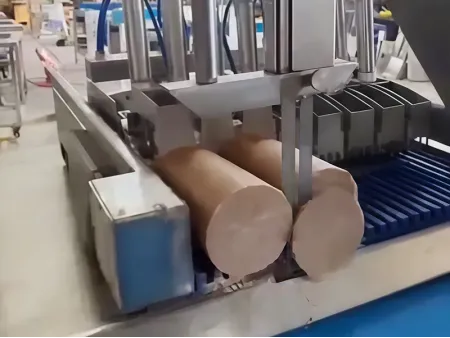

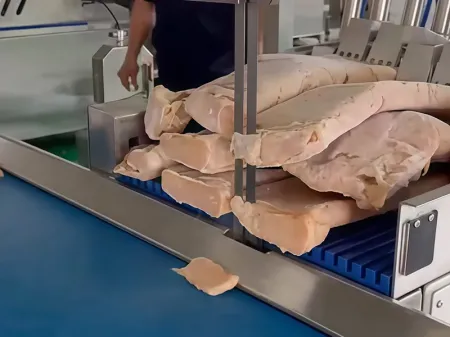

The automatic meat band saw is suitable for cutting various types of bones, including livestock bones (such as beef and lamb), poultry bones (such as chicken and duck), seafood bones (such as fish bones), and frozen meat.

With the conveyor belt’s automatic alignment function, food materials do not require manual adjustment after placement; the machine automatically aligns the cutting path, making it especially suitable for standardized production during large-scale processing. Based on sensory data, the intelligent saw can optimize cutting parameters through a digital control system, perform automatic cutting, free operators’ hands, and reduce labor costs.

Applications
    1. Ham
    1. Frozen meat
    1. Ribs
Key Parameters
Model HKJZ
Worktable size 650 mm × 530 mm
Dimensional accuracy 0.1 mm
Max cutting thickness 100 mm
Saw blade line speed 32 m/s
Saw blade specification 3335 mm × 2 blades (length × quantity)
Power supply Three-phase five-wire, 380V
Equipment power 4.8 kW
Cutting motor power: 3 kW
X-axis motor power 0.75 kW
Y-axis motor power 0.75 kW
Conveyor motor power 0.3 kW
Air pressure 0.6 MPa
Dimensions 1750 × 1550 × 1850 mm
Features
    1. Saw blades

      Durable and sharp, long-lasting without replacement, safe and reliable.

    1. Control panel

      Simple and clear buttons allow control of cutting speed and dimensions; operation is intuitive.

    1. Servo motors

      Feed is driven by servo motors for high precision and stable product clamping.
