Overview

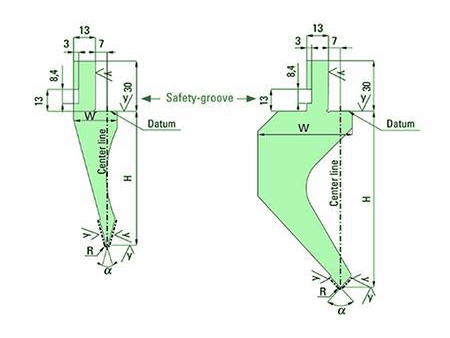

The Amada press brake tooling is a European style tooling. Whether the European top tools or European Bottom tools, both feature standard safety grooves to prevent tools from dropping.

With a large number of Amada press brake tooling inventory, Fangwei is capable of meeting your needs. The following are the common types of European press brake tools. If you don’t find what you are looking for, please feel free to contact us.

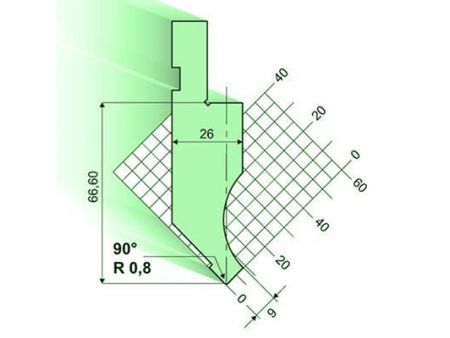

Punches

Currently 90°, 88° ,60°, 30° punches are provided by Fangwei. Here are the common punches for Amada press brake tooling.

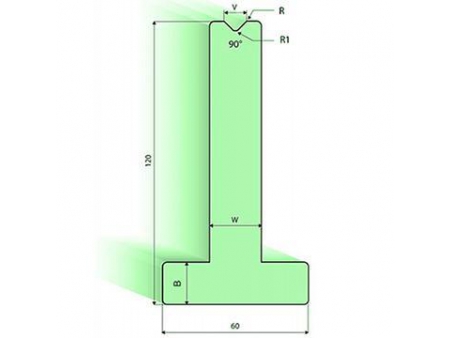

Dies

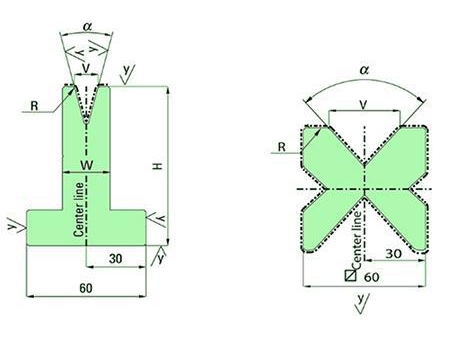

Currently 90°, 88° ,60°, 30° dies are provided by Fangwei. Here are the common dies for Amada press brake tooling.

Advantages
  • According to our rich experience in press brake tooling production, the following three kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
    1. 42 CrMo4, tempered to 1100 - 1200 N / mm²
    2. 1.2312, tempered to 950 - 1100 N / mm²
    3. C45, tempered to 800 - 850 N / mm²
  • The hardness of the bending radius and intake radius can achieve 45-50RC.
  • The Amada press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.
Tool Lengths
Punches/Top-Tools

The top tools can be delivered as a complete set or a sectionalized set according to customer’s requirements. For example, the length 835mm punches can be sectionalized into 9 segments.

Lenght Picture

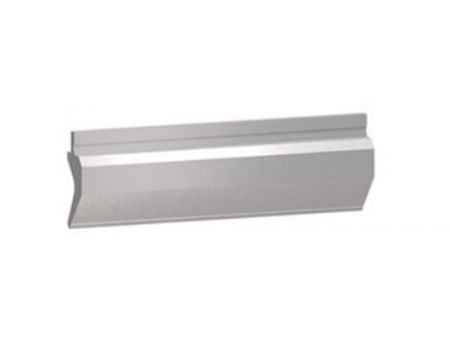

Length 835mm
Length 415mm

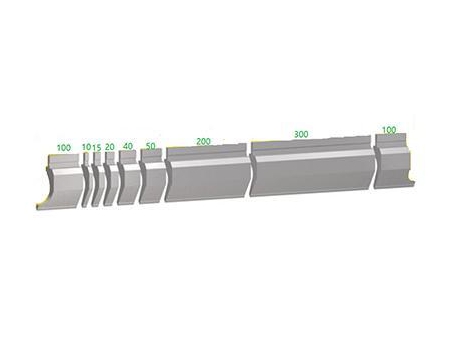

Length 835mm sectionalized
Dies

The dies can be delivered as a complete set or a sectionalized set according to customer’s requirements. For example, the length 835mm dies can be sectionalized into 8 segments (10mm, 15mm, 20mm, 40mm, 50mm, 100mm, 200mm, 400mm).

Lenght Picture

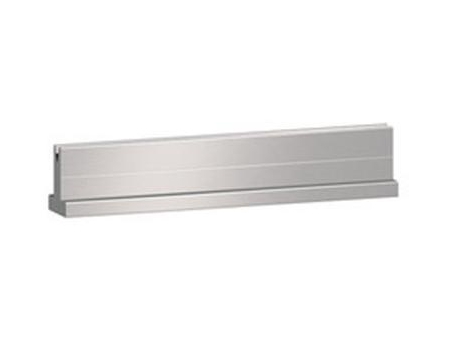

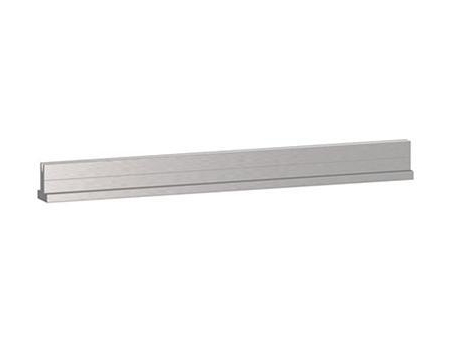

Length 835mm
Length 415mm

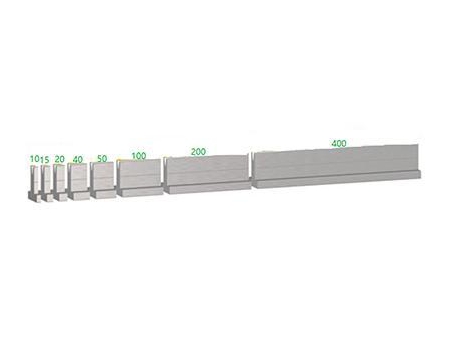

Length 835mm sectionalized
