Overview

The LVD precision press brake tooling is American style tooling and it is compatible with any type of LVD style press brake.

Fangwei has a huge inventory of LVD press brake tooling to fit your press brakes. The following are common types of LVD precision press brake tooling. If you don’t find the press brake tools you need, welcome to contact us for custom service.

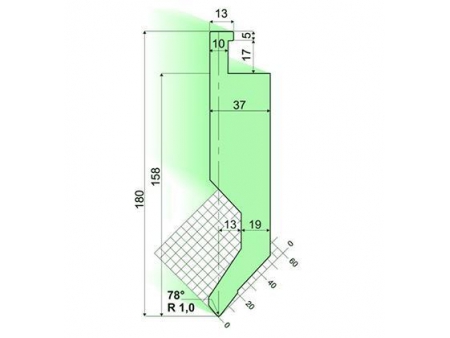

Punches

Fangwei can provide customers with a complete set of press brake tooling. Currently, we have abundant inventories of punches for LVD press brake tooling.

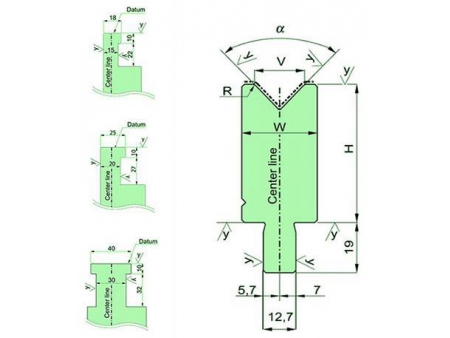

Dies

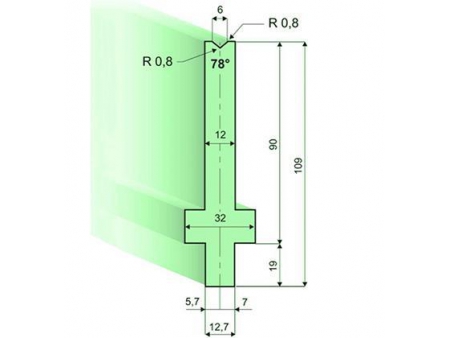

Currently 78°, 26° dies for LVD press brake machines are provided by Fangwei. Here are the common dies for LVD press brakes.

Advantages
  • According to our rich experience in press brake tooling production, the following three kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
    1. 42 CrMo4, tempered to 1100 - 1200 N / mm²
    2. 1.2312, tempered to 950 - 1100 N / mm²
    3. C45, tempered to 800 - 850 N / mm²
  • The hardness of the bending radius and intake radius can reach 45-50RC.
  • The Trumpf press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling are compatible with the widest variety of press brake machines.
Tool Lengths
Punches/Top-Tools

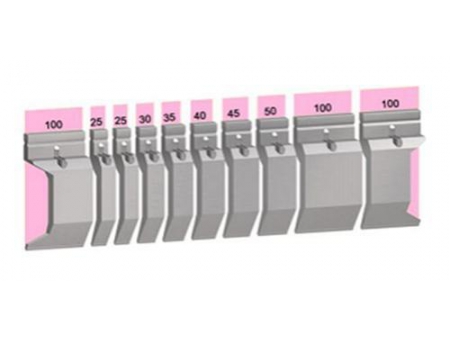

Sectionalized die is delivered as a complete set 10 Segments (100 Horn left 25, 25, 30, 35, 40, 45, 50, 100, 100 Horn right)

Lenght Picture
Length 508mm
Length 550 mm sectionalized
Dies

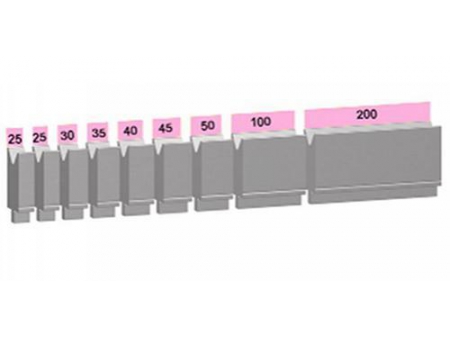

Sectionalized die is delivered as a complete set 9 Segments (25, 25, 30, 35, 40, 45, 50, 100, 200)

Lenght Picture
Length 508 mm
Length 550 mm sectionalized
