Cold Chain System Solution

Freezing System, Flake Ice Maker Manufacturer

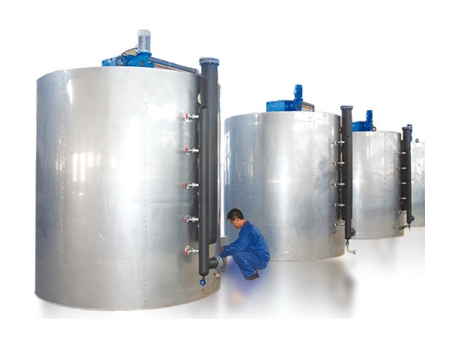

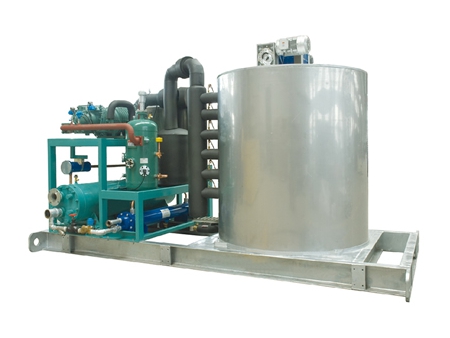

The flake ice maker produces flaked ice, and is often used for processing frozen foods such as seafood and poultry. It is also used in a variety of other fields, including dyestuff chemicals, fresh supermarkets, pelagic fisheries, large concrete grouting, mine cooling projects and more.

The flake ice maker will directly freeze fresh water that comes into the ice-making evaporator cylinder, and the flaked ice will be continuously peeled into the ice storage room using a high hardness stainless steel hob cutter. We offer a variety of specifications, as well as a complete set of ice making systems and related accessory equipment, such as an automatic ice feeding system, automatic ice delivery system, ice storage room and more.

Parameters
Items Parameters
Model TFB-7J
Dimension 2160×2160×3660mm(With ice storage room)
Flaked ice temperature -5℃~-8℃
Flaked ice thickness 1.5 ~2mm
Ice making capacity 7000kg/24h
Ice storage capacity 7m³
Refrigerant R22
Nominal refrigeration capacity 48.5KW(-25℃/ 30℃)
Compressor model 6FE-44Y-40P
Liquid supply mode expansion valve supply

Notes: These parameters are subject to change based on different products and processes.

Custom Range
  • We can customize and manufacture ice making machines according to different food conditions and customer requirements.
  • Users can choose a variety of production capacities, ranging from 3500 kg/24h to 16000 kg/24h.
  • The liquid supply mode can be divided into pump liquid supply and expansion valve supply.
  • The expansion valve is available with or without a refrigeration unit.
  • Customers can choose to have an ice storage room equipped on the ice maker.
