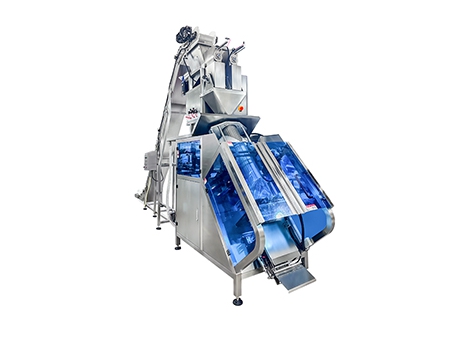

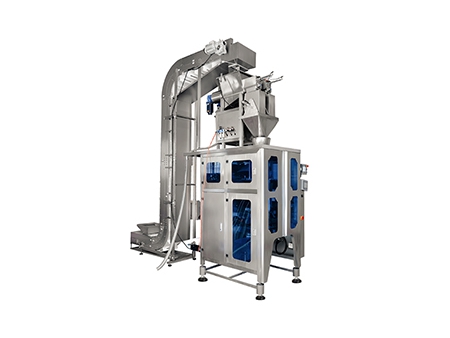

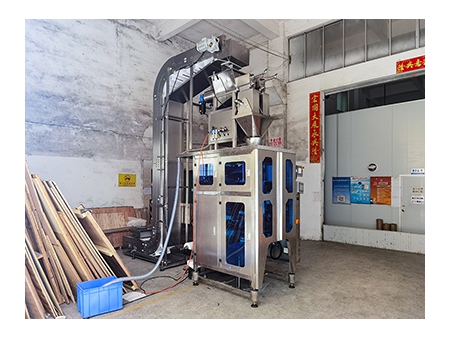

Automatic Ice Packaging Machine, SK-L820
Request a Quote
Vertical form-fill-seal ice packaging
- Weight range: 10-10kg/bag
- Packaging speed: approx. 5bags per minute (line speed, depending on weight of each bag)
- Bag type: back seal bag
- Bag material: composite film, PE film
Applicable Products
- Crushed ice
- Square cube ice
- Flake ice
- Tube ice
Packaged Products

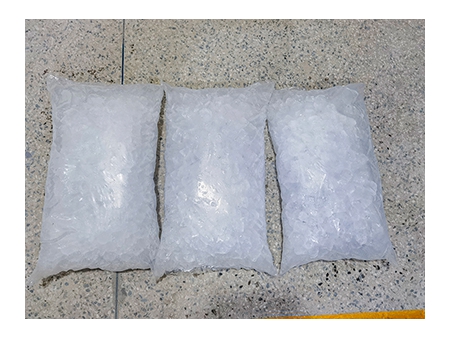

- 10kg ice packaging
Technical Parameters of Ice Packaging Machine (Main Machine)
| Model | SK-L820 |
| Max. film width | Max.820mm |
| Weight range | 10-18kg |
| Bag width range | 200-400mm |
| Bag length range | 100-600mm |
| Packaging speed | 5-50 bags/min (depending on product and packaging weight) |
| Bag material | Composite film, PE film |
| Bag type | Back seal bag |
| Dimensions (L*W*H) | 2010*1660*2750 mm |
| Machine weight | 850kg |
| Power supply | 220V 50/60HZ, 4kW |
| Air consumption | 0.65MPa, 2.5m³/min |
Features
- The fully automated process, which includes bag forming, filling, sealing, and cutting, is completed in a single streamlined operation.

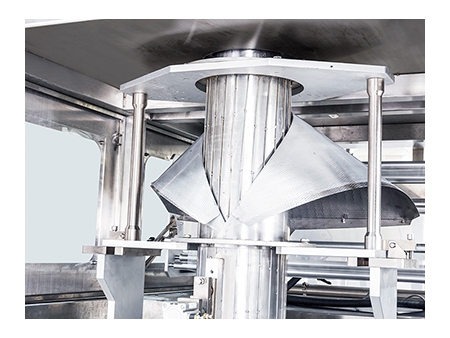

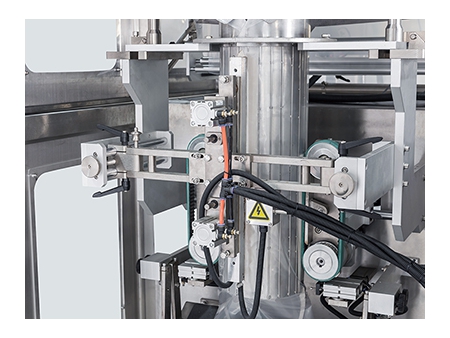

- The SOONKPACK attachments prevent bags from sticking to the forming equipment during film transport, ensuring a smoother packaging process for ice blocks and granules.

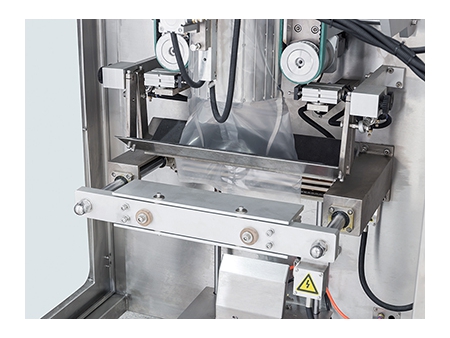

- The innovative sealing technology enhances the appearance and durability of the package seals.

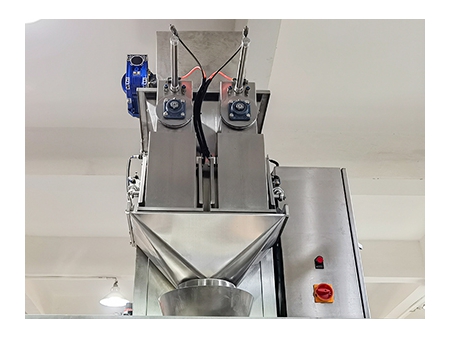

- Our custom-designed dual-head screw weighers guarantee precise measurement and consistent ice packaging.

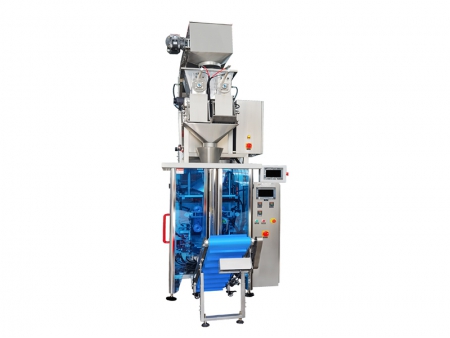

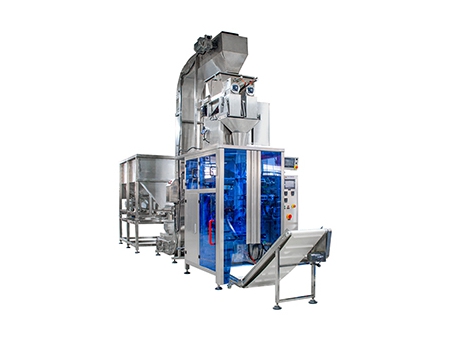

- We offer flexible configuration options, including dual-head or triple-head weighers, to meet the specific requirements of our clients.
- SOONK has nearly a thousand ice packaging clients and is therefore well-positioned to understand their challenges and needs. We continuously upgrade and improve our equipment to ensure greater functionality and adaptability.
If you want to know more about this VFFS machine, don't hesitate to contact us!
