High Pressure Flexible Composite Hoses

Request a Quote

Website: http://wellhead-equipment.com/1-4-high-pressure-flexible-composite-hoses.html

Delivery Hoses for fuel, oil, gas and chemicals

High pressure flexible composite hoses are a type of drilling hoses made from polymer composites. The composite hoses consist of four layers, a polyethylene (PE) inner tube, a stainless steel tube, a reinforcement layer and a protection cover. The flexible lines can be used to deliver oil, gas, water and chemicals. The composite lines have a wide spectrum of advantages, from high strength, anti-corrosion, scaling resistance, wear resistance, insulation, high flexibility and a long service life.

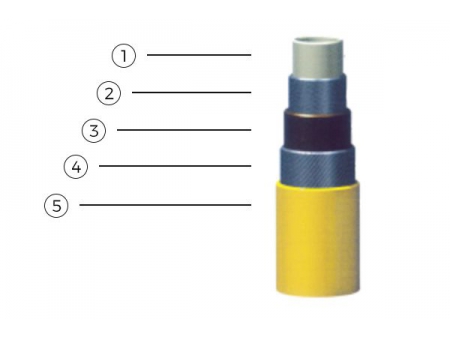

Structure (from the inside to the outside)

Inner tube;
Reinforcement layer;
Wear-resistant layer;
Reinforcement layer;
Outer protection layer

Technical Parameters

Inner Diameter (mm)	Working Pressure (MPa)	Min. Bend Radius (mm)
25	16	300
40	25	450
40	16	450
40	6.4	450
50	25	500
50	16	500
50	6.4	500
60	25	600
60	16	600
60	6.4	600
65	25	700
65	16	700
65	6.4	700
75	16	750
75	6.4	750
90	16	800
90	6.4	800
102	16	900
102	6.4	900
125	6.4	1000
150	6.4	1200
175	6.4	1500
200	6.4	2000
25	16	300

(With models customizable as customers order)
