Air Compressor

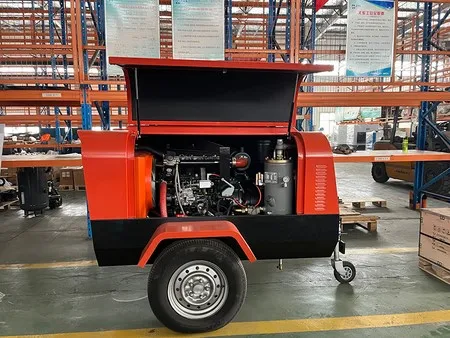

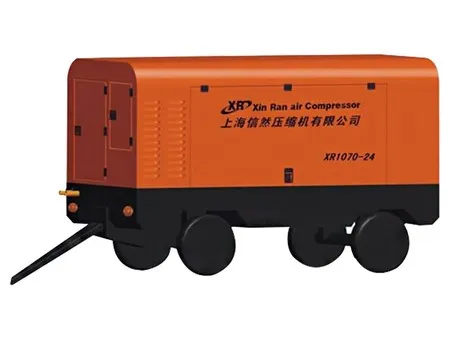

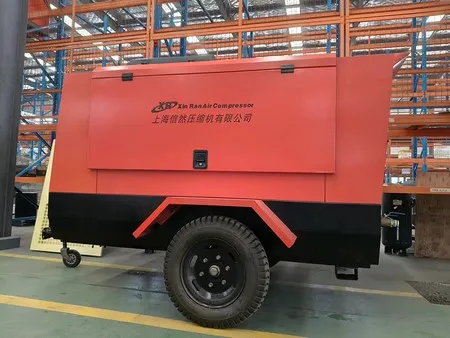

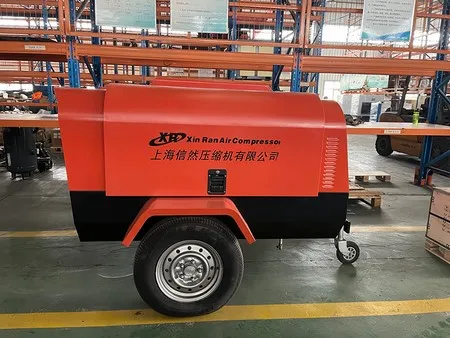

Diesel driven portable air compressor
Diesel mobile air compressor, powered by a diesel engine, is a versatile portable air compressor widely used in construction, road maintenance, mining, and oil and gas exploration. The primary mechanism involves the diesel engine powering the compressor to pressurize air, which is then stored in cylinders and delivered through pipes to the job site for use in various pneumatic tools and equipment.
- Pressure: Ranges between 7 to 14 bar, with capabilities up to 25 bar
- Free Air Delivery: Commonly between 2.5 to 4.0 m³/min, with some models reaching up to 6.0 m³/min
- Power: Between 50 to 500 horsepower
- Fuel Consumption: Between 5 to 10 liters per hour, but can be higher
- Weight: Usually ranges from 800 to 5000 kilograms, with larger models available
- High Reliability: With fewer components and no wear parts, diesel mobile air compressor operates reliably with a long lifespan, and major maintenance intervals can reach 40,000 to 80,000 hours.
- Ease of Operation and Maintenance: High automation allows operation without extensive training, facilitating unattended operation.
- Balanced Dynamics: Without unbalanced inertial forces, it operates smoothly at high speeds, suitable for foundation-free operations, making it particularly ideal as a mobile compressor due to its compact size, lightweight, and minimal space requirement.
- Strong Adaptability: Characterized by forced air delivery, its volumetric flow is nearly unaffected by discharge pressure, maintaining high efficiency across a wide range of speeds.
Model | |||||||
Compressor | FAD(m³/min) | 3.5 | 5.2 | 7 | 8.5 | 11 | 13 |
Pressure(Bar) | 7 | 8 | 8 | 14 | 13 | 14 | |
Fuel(L) | 48 | 85 | 85 | 120 | 210 | 300 | |
Stage | Single | Single | Single | Single | Single | Single | |
Connection | 2XG3/4 | G3/4, G11/4 | G3/4, G11/4 | G1, G11/2 | G1, G11/2 | G1, G11/2 | |
Power | Motor type | YSD490 | Y4100G | Y4102ZG | 6BTA5.9 | 6BTA5.9 | 6BTA5.9 |
Manufactory | Yituo | Yituo | Yituo | Cummins | Cummins | Cummins | |
Power(KW) | 33 | 42 | 55 | 97 | 110 | 132 | |
rotation(rpm) | 2400 | 2200 | 2200 | 2200 | 2200 | 2200 | |
Battery(V) | 24 | 24 | 24 | 24 | 24 | 24 | |
Machine unit | L(mm) | 2910 | 3315 | 3315 | 3900 | 4200 | 4300 |
W(mm) | 1526 | 1607 | 1607 | 1980 | 1520 | 1300 | |
H(mm) | 1430 | 1583 | 1583 | 1950 | 2268 | 1950 | |
Weight(Kg) | 950 | 1200 | 1350 | 2000 | 2300 | 2500 | |
Model | |||||||
Compressor | FAD(m³/min) | 14 | 17 | 21.2 | 21.2 | 23.3 | 30 |
Pressure(Bar) | 10 | 14 | 14 | 20 | 14 | 24 | |
Fuel(L) | 300 | 360 | 380 | 380 | 410 | 480 | |
Stage | Single | Single | Single | Single | Single | Single | |
Connection | G1, G11/2 | G1, G11/2 | G11/2, G2 | G11/2, G2 | G11/2, G2 | G21/2, G21/2 | |
Power | Motor | 6BTA5.9 | 6BT8.3 | 6LTAA8.9 | 6LTAA8.9 | 6LTAA8.9 | 6LTAA8.9 |
Manufactory | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | |
Power(KW) | 132 | 179 | 239 | 260 | 239 | 348 | |
Rotation(rpm) | 2200 | 1800 | 1800 | 1800 | 2100 | 1800 | |
Battery(V) | 24 | 24 | 24 | 24 | 24 | 24 | |
Machine unit | L(mm) | 4300 | 5200 | 5200 | 5200 | 5200 | 5500 |
W(mm) | 1300 | 1960 | 2060 | 2060 | 2060 | 2300 | |
H(mm) | 1950 | 2300 | 2480 | 2480 | 2480 | 2500 | |
Weight(Kg) | 2500 | 2800 | 5600 | 6200 | 5800 | 6800 |
