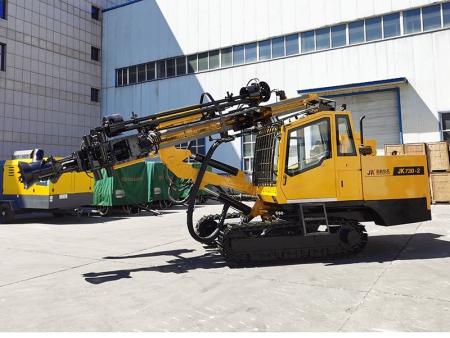

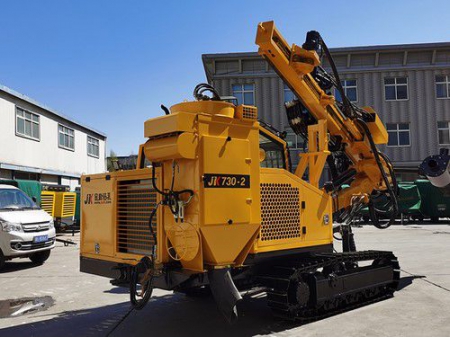

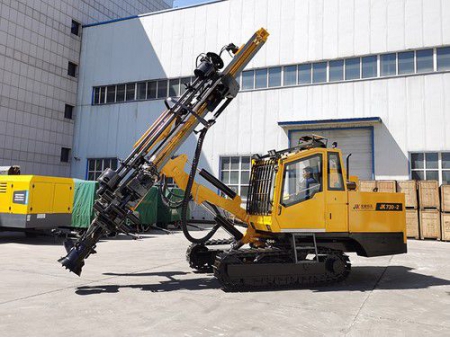

JK730 Surface Drilling Rig with Automatic Rod Changer

With a power unit composed of diesel engines and hydraulic oil pumps, the automatic crawler-mounted drilling rig is efficient and energy-saving. A hydraulic motor facilitates drilling, feeding, lifting, walking and hydraulic cylinder positioning. The luxurious cabin provides a safe and comfortable operation environment that reduces labor intensity and labor costs. Without an integrated air compressor, the rig can be connected to air compressors as needed. This integrated drilling rig features its convenient operation and maintenance as well as low downtime rate.

Applications
The drilling rig is mainly used for blasthole drilling, well drilling, piling and micro-piling, foundation drilling and environmental survey hole drilling.

Advantages
  • During operation, compressed air is utilized only by the DTH hammer, which reduces air compressor's output by 30% to 50% compared to pneumatic drill rigs and lowers energy consumption (fuel oil or electricity) by 40% to 50%.
  • The rig is equipped with an automatic device that can store, change and connect drilling rods.
  • With a hole locating device, the rig increases the precision of drilling holes.
Technical Specifications
Model JK730-2
Borehole diameter 90-165mm
Drill rod carousel Rod capacity 5 1/6 1
Rod length 3m
Rod diameter Ø76mm
Auto rod-changing depth 18m/21m
Applicable rock hardness f=6-20
Working air pressure 1.2-2.4MPa
Air consumption 11-21m³/min
Feeding stroke 3850mm
Rod-changing length 3m
Max. horizontal drilling height 2970mm
Rotation rate 0-90rpm
Rotation torque 3300N·m
Travel speed 2km/h, 3km/h
Grade ability 20°
Power Yuchai 92kW (optional Cummins 97kW)
Dust collector (optional) Hydraulic dry dust collector
Wet dust collector
Dimension (L×W×H) 7000×2400×3350mm
Weight 9000kg
Main Components

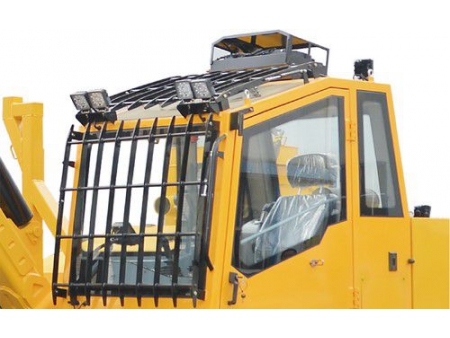

  • Cabin
    The enclosed cabin is FOPS-certified.
    A large safety window offers a wide view which enables operators to better control the rig.
    With a ground clearance of more than 400 mm, it can be applied in rough terrains without colliding with the ground.

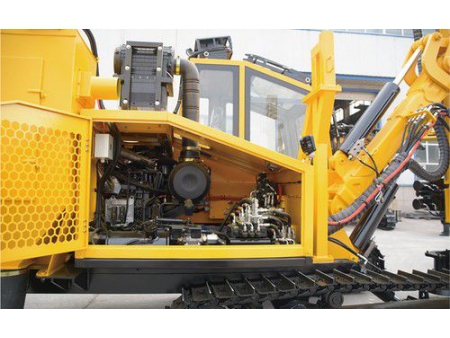

  • Air intake system
    Three-stage air intake system ensures intake of clean air and reduces filtering costs and failure rate of engines.

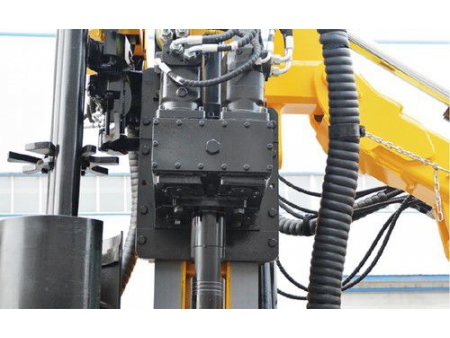

  • Rotation unit
    Double cycloid motors deliver a high torque output and reduce the possibility of jamming.
    Rotation rate can be flexibly adjusted based on different formations.
    The seals deliver reliable performance and have long service life.

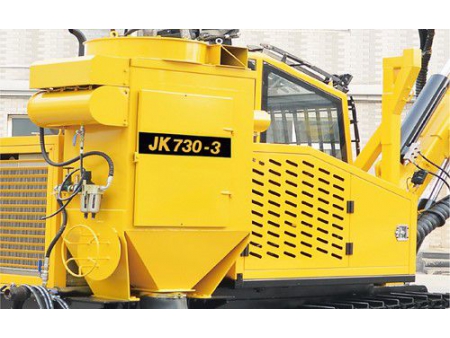

  • Dust collecting system
    The hydraulic dust collector with a sliding cover delivers stable and efficient performance.

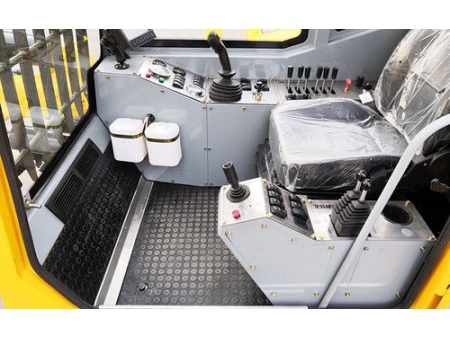

  • Control system
    The dashboard clearly displays the operational parameters for convenient monitoring and control.
    A hydraulic pilot control system enables precise control of the hydraulic system.
    The lever can be operated with one hand to control the drilling actions, such as feeding and rotation.
    It supports automated setting of drilling parameters, which is user-friendly and saves time.
    Dual hydraulic system supports smooth and steady traveling.
  • Leveling jacks
    Maintenance-free leveling jacks are designed with a high-strength structure. With widened tracks, the rig has robust climbing capability.
    The leveling jacks are designed to angle to 10 degrees left and right. They support 2-speed shift.
We provide bespoke drilling solutions for open-pit mining.

With years of experience in designing and manufacturing custom high-performance surface mining equipment, we are expert in providing bespoke drilling solutions based on our deep understanding in machinery, electric, hydraulic and pneumatic fields. To meet the challenges in open-pit mining projects, we guarantee that our drilling products deliver outstanding performance in terms of quality, efficiency and techniques.

  • Excellent travelling capability: the rig must be capable of quickly traveling between mining areas.
  • User-friendly operation: it requires simple training for operators.
  • Maintenance: it is easy to buy the parts and the maintenance cost is low.
  • Productivity: the rig features high productivity and low cost of production.
  • Safety: it delivers outstanding performance in terms of safety.
