JK590BC
Surface drill rig for open-pit mining & road construction
- Borehole diameter: 90-165mm
- Borehole depth: 50m
- Walking speed: 2km/h, 3km/h
- Optional: Hydraulic dry dust collector/wet dust collector

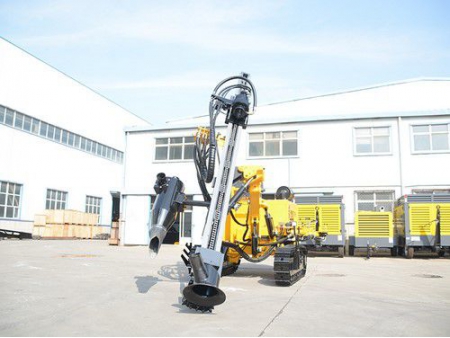

Crawler Mounted Hydraulic DTH Drilling Rig
Request a Quote

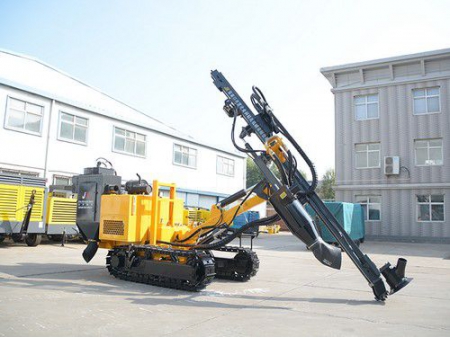

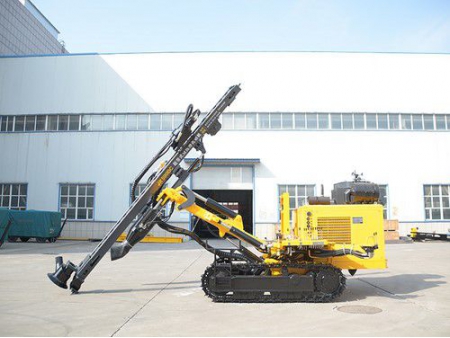

JK590BC-2A Crawler Mounted Hydraulic DTH Drilling Rig
The crawler-mounted DTH drilling rig is well designed to drill through rocks easily, efficiently and at a low cost. As a star product among separated DTH drilling rig, it has sold thousands of units worldwide.
The drilling rig is powered by a power unit composed of diesel engine and hydraulic oil pump, with a hydraulic motor facilitating drilling, feeding, lifting, walking and hydraulic cylinder positioning. During operation, compressed air is utilized only by the DTH hammer, which reduces air compressor’s output by 30% to 50% compared to pneumatic drill rigs and lowers energy consumption (fuel oil or electricity) by 40% to 50%.
Applications
The drilling rig is widely used for hydro-power engineering, open pit mining, road construction, drilling and blasting operation of national defense engineering.
Technical Specifications
| Model | JK590BC |
| Borehole diameter | 90-165mm |
| Borehole depth | 50m |
| Applicable rock hardness | f=6-20 |
| Working air pressure | 1.2-2.5MPa |
| Air consumption | 11-21m³/min |
| Feeding stroke | 4138mm |
| Rod-changing length | 3m |
| Max. horizontal drilling height | 3370mm |
| Rotation rate | 0-80rpm |
| Rotation torque | 4000Nm/2000N.m |
| Walking speed | 2km/h, 3km/h |
| Grade ability | 24° |
| Power | Yuchai 70kW/Cummins 74kW (optional) |
| Electric motor 55kW | |
| Dust collector (optional) | Hydraulic dry dust collector |
| Wet dust collector | |
| Dimension (L×W×H) | 7000×2200×2100mm |
| Weight | 7200kg |
Main Components

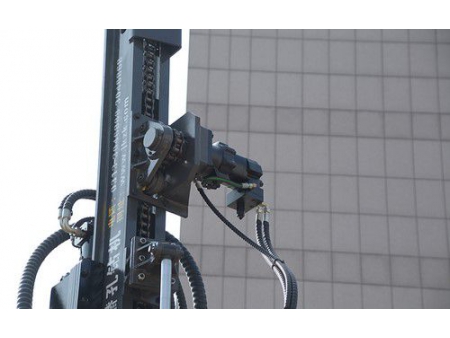

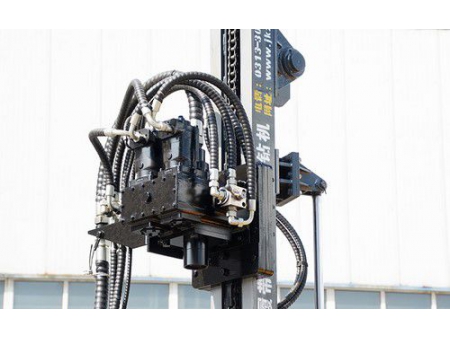

- Rotation unit
- Two motors provide large torque and precise control of two rotation speeds.
- Imported rotary seals ensure reliable sealing performance and long service life.
- High molecular liner plates are wear-resistant and durable.
- Manganese steel-framed guide rail is added to protect the mast from wear.

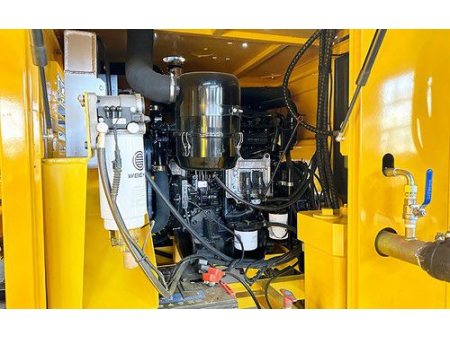

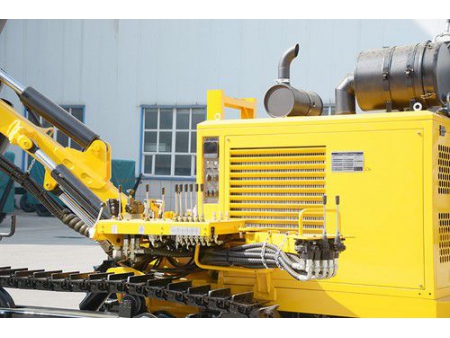

- Power system
- Imported hydraulic pumps feature pressure resistance, large output, high quality and long service life.
- The turbocharged engine provides strong driving forces, and it is easy to maintain.
- Two-stage air filter ensures intake of clean air, safety and reliability.
- Integrated oil-water cooler facilitates operation of motors and the hydraulic system in high heat environments.
- Maintenance-free feed system
- Hydraulic-mechanical lock system supports stable torque output of hydraulic motors while avoiding hydraulic leak and sliding. The locks don’t need routine oiling and maintenance.

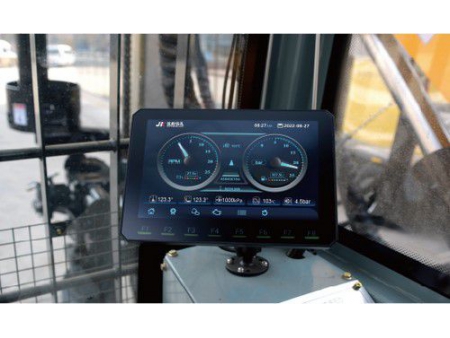

- Control panel
- All-in-one control system enables all operational controls of the drilling rig.
- The control panel adopts an independent travelling system that enables 3 speed shifting. The cabin provides a wide view to ensure safe operation.
- Imported control valves deliver reliable performance.
- Maintenance-free undercarriage
- Imported motors provide strong driving forces that offer robust climbing capability. They also can drive air compressors. Optional non-powered travel motors are available.
- Two speed travelling system features high travelling speed which saves time.
- 4 leveling jacks are designed to angle to 15 degrees left and right to support drilling work in rough terrains.
- Maintenance-free rollers don’t need oiling.
- Track guards are equipped to prevent track from derailing.

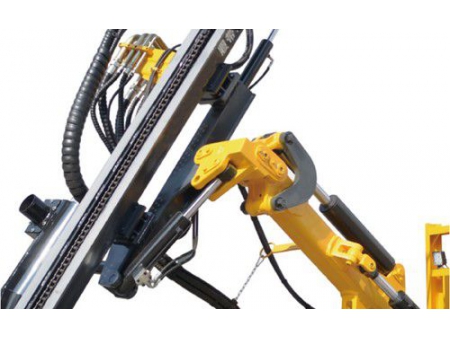

- Drilling arm
- Extended drilling arm enables multi-angle drilling, for example, drilling horizontal, vertical and inclined holes.
- The drilling arm covers a fan-shaped area 20% larger than those of other drilling rigs.
Customizable Drilling Equipment
We provide customized drilling solutions tailored to your needs.
- Before designing the drilling solutions, we will get a deep understanding of challenges and problems in your projects.
- Since there are no exactly the same drilling projects, our rich experience contributes to simple and cost-effective solutions.
- We are experienced in designing high-performance drilling rigs to meet various needs in a wide range of industries.
- Our expertise in machinery, electric, hydraulic and pneumatic fields enable us to manufacture excellent drilling machines.
What are the main components of crawler mounted hydraulic drilling rigs?
The hydraulic drilling rig is mainly composed of power unit, hydraulic system, crawler travelling unit, hydraulic rock drill and drilling arm.
What are the applications of rock drilling equipment?
Rock drilling equipment are widely used in pre-drilling hard rock, micro piling, geothermal, solar, foundation, deep well and geotechnical drilling applications.
What are the advantages of surface drilling rigs?
Surface drilling rigs are designed to improve productivity and minimize the fuel consumption and operational costs. The hydraulic system facilitates beam movement, drilling and feeding. This type of drilling rig is durable and sturdy and it consumes less energy to operate for a long time.
