5005 Aluminum Alloy

Request a Quote

View All: http://aluminum-alloys.co.uk/1-5-1-5005-aluminum-alloy.html

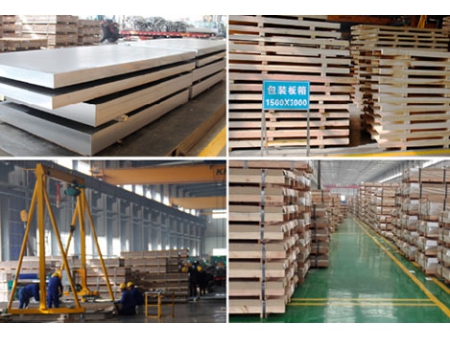

5005 aluminum sheets/plates

5005 aluminum sheets/plates available size range

Thickness: 0.2-200mm
Width: 30-2500mm
Length: 500-13000mm

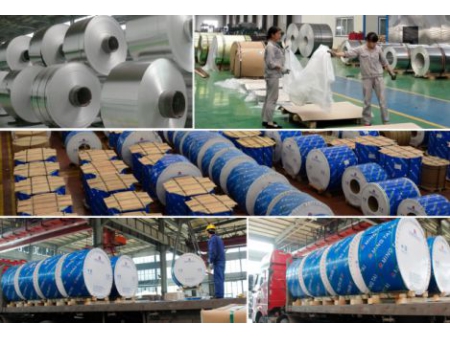

5005 aluminum coil available size range

Thickness: 0.2-6.35mm
Width: 500-2500mm

Application

5005 aluminum alloy is used in a wide range of applications and industries including electric conductors, home appliances, chemical & food equipment, decorative and architectural applications, general sheet metal work, high strength foil, applications that require an anodized finish.

Aluminum alloy state, size and mechanical properties

Alloy	Temper	Thickness (mm)	Tensile strength (Mpa)		Elongation (%)
			Chinese standard	Value
5005	O	≥0.5-0.8	100-145	110-135	≥18
		＞0.8-1.3			≥20
		＞1.3-4.0			≥21
	H22	≥0.5-0.8	125-165	130-150	≥3
		＞0.8-1.3			≥4
		＞1.3-4.0			≥6
	H24	≥0.5-0.8	145-185	145-175	≥1
		＞0.8-1.3			≥2
		＞1.3-4.0			≥3
	H26	≥0.5-0.8	165-205	165-190	≥1
		＞0.8-1.3			≥2
		＞1.3-4.0			≥3
	H18	≥0.5-0.8	≥185	≥185	≥1
		＞0.8-1.3			≥2
		＞1.3-4.0			≥3
