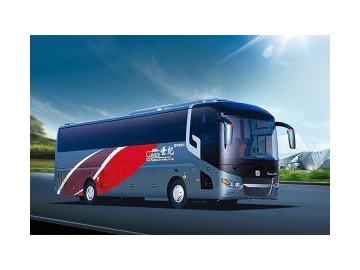

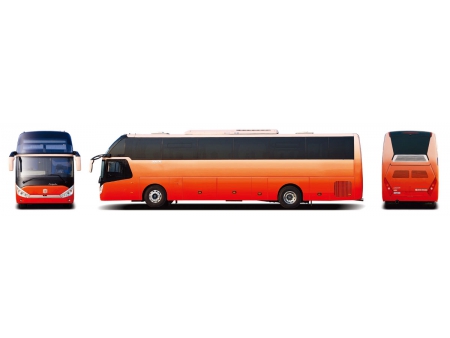

6129H Coach (Navigator)
Request a Quote
Navigator 6129H series coach is specially designed for tourist and passenger transport. The zhongtong chassis makes the bus to be highly safe and reliable. The bus's skeleton is designed with CAD finite element analysis technique. Combined instrument panel of the bus is made to be easily maintained and repaired. The original model of 6129H has been put onto market for 3 years.
Bus parameters | total length (mm) | 12590 | Engine | model | ISME420 30/OM 457LA |
total width (mm) | 2550 | manufacturer | Cummins/Benz | ||
total height (mm) | 3830 | position/fuel | rear/diesel | ||
inner height (mm) | 2030 | type | straight 6-cylinder, 4-stroke, water cooling, turbocharging, intercooling, direct injection | ||
wheelbase (mm) | 6200 | max power (kw) | 306/260 | ||
front/rear suspension (mm) | 3000/3390 | max torque (N.M) | 1800/1750 | ||
approach angle/departure angle (º) | 9/9 | displacement (ml) | 10800/11970 | ||
height of single step (mm) | 380 | cylinder diameter × stroke (mm) | 125X147/128*155 | ||
max total mass defined by factory (kg) | 18000 | emission standard | |||
rated capacity (person) | 42 1 1 | luggage compartment volume (m3) | |||
max speed (km/h) | 100 | ||||
Item | Standard configuration | Optional configuration | |||
Chassis parameters | chassis | Zhongtong Bus Holding Co., Ltd. | |||
gearbox | fast 6DS180T | Benz GO210-6E (equipped with Benz engine and hydrodynamic retarder) | |||
clutch | imported clutch φ430, single plate, dry | ||||
front axle | Dongfeng Dana 6.5T | Benz F7.5, disc brake | |||
rear axle | Dongfeng Dana 13T (precision grinding gear, imported bearing) | Benz R440 13T rear axle, disc brake | |||
suspension | air suspension with 6 airbags | ||||
steering | recirculating type ball integral power steering gear | ZF8098 | |||
brake | front and rear drums, WABCO ABS/ASR, Telma retarder, automatic adjusting arm | front disc brake, CAMA eddy current retarder | |||
fuel tank | 235L 235L | 300L 300L | |||
tire | 315/80R22.5 aluminum ally wheel rim (FCT) | Michelin tire, steel wheel | |||
accumulator/alternator | 2×12V/200Ah / 28V/150A 140A | ||||

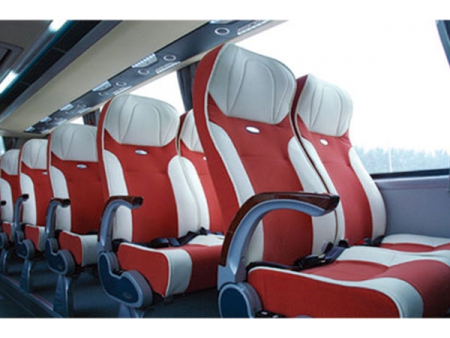

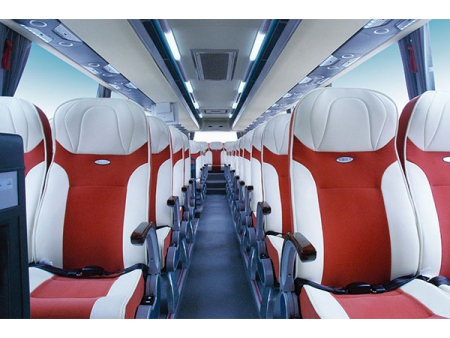

seat | ZTZY1052 driver's seat; ZTZY3280 upgraded passenger seats with armrest in the middle; 3-point safety belt (with E-MARK mark) | Zhongtong ZTZY3210 luxury aeronautic seat (adjustable armrest and adjustable backrest); ZTZY1050 driver's seat; safety belt for each seat. |
