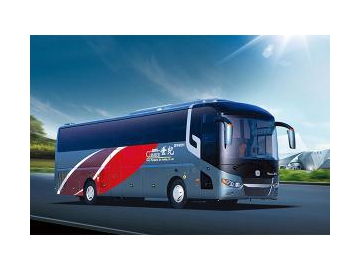

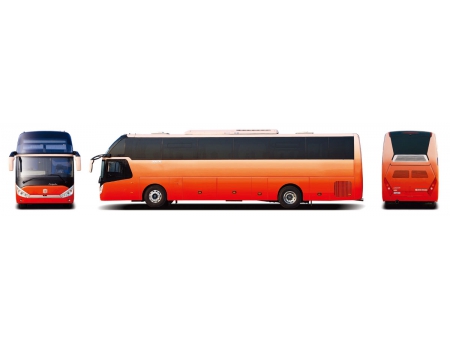

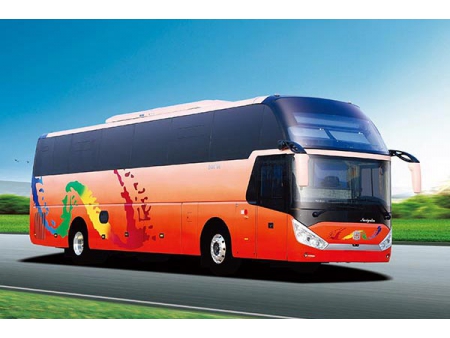

6129HB Coach (Navigator)
Request a Quote
Navigator 6129HB series coach is specially designed for tourist and passenger transport. The zhongtong chassis makes the bus to be highly safe and reliable. The bus's skeleton is designed with CAD finite element analysis technique. Combined instrument panel of the bus is made to be easily maintained and repaired. The original model of 6129HB has been put onto market for 3 years.
| Bus parameters | total length (mm) | 12590 | Engine | model | ISME420 30/ OM 457LA |
| total width (mm) | 2550 | manufacturer | Xian Cummins/Benz | ||
| total height (mm) | 3920 | position | rear | ||
| inner height (mm) | 2050 | type | straight, turbocharging , intercooling, high pressure common rail | ||
| wheelbase (mm) | 6400 | max power (kw) | 306/260 | ||
| front/rear suspension (mm) | 2800/3390 | max torque (N.M) | 1800/1750 | ||
| approach angle/departure angle (º) | 7.5/7.5 | displacement (ml) | 10800/11970 | ||
| height of single step (mm) | ≤380 | cylinder diameter × stroke (mm) | 125X147/128*155 | ||
| max total mass defined by factory (kg) | 18000 | fuel type | diesel | ||
| rated seating capacity (persons) | 46 1 1 | emission standard | |||
| max speed (km/h) | 100 | ||||
| luggage compartment volume (m3) | ≤10 | ||||
| Item | Standard | Optional | |||
| Chassis parameters | chassis | LCK6133RA | |||
| gearbox | Fast 6DS180T | Benz GO210-6E (matching Benz engine, equipped with hydrodynamic retarder) | |||
| clutch | SACHS φ430 | ||||
| front axle | Dongfeng Dana, 6.5T | F7.5 disc brake from Benz | |||
| rear axle | Dongfeng Dana, 13T | Benz R440, 13T rear axle, disc brake | |||
| suspension | air suspension with 6 airbag (2 front, 4 back side) | ||||
| steering | ZF 8098 servo diverter | ||||
| brake | front and rear drum brakes, automatic adjusting arm, Voith hydraulic retarder | front and rear drum brakes, WABCO ABS, eddy current retarder | |||
| fuel tank | 300L 300L | 200L 200L | |||
| tire | 315/80R22.5 (Double Coin) FCT aluminum alloy wheels | 295/80R22.5 (Michelin/Double Coin), steel wheels | |||
| alternator | 2×12V/200Ah / 28V/150A 140A | ||||

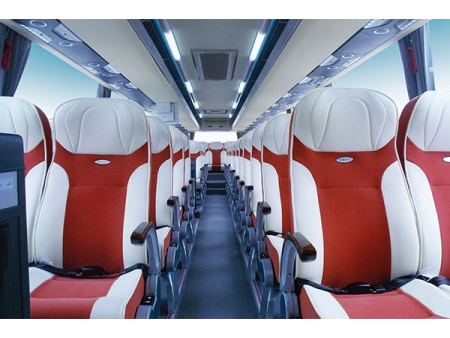

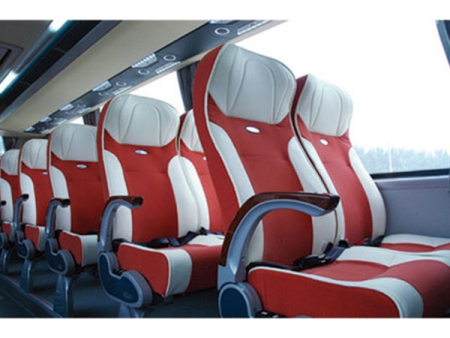

| seat | Marco Polo passenger seat; leg support; 2 2 layout; pedal; paper bag; cup holder, driver's seat TZY1052 with air bag | ZTZY3210 luxury seat (with adjustable armrest and adjustable backrest ); ZTZY1052 driver's seat; ZTZY1051 tourist guide seat | |||
