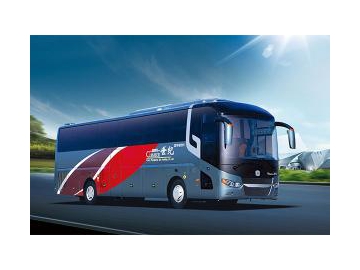

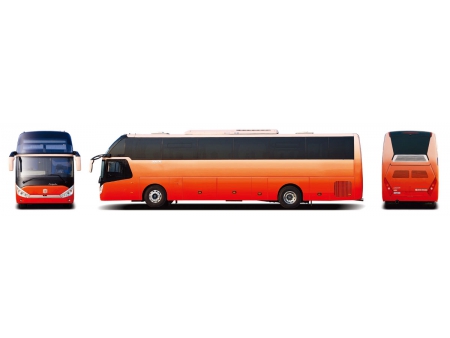

6137HB Coach (Navigator)
Request a Quote
Navigator 6137HB series coach is specially designed for tourist and passenger transport. The zhongtong chassis makes the bus to be highly safe and reliable. The bus's skeleton is designed with CAD finite element analysis technique. Combined instrument panel of the bus is made to be easily maintained and repaired. The original model of 6129H has been put onto market for 3 years.
| Bus parameters | total length (mm) | 13700 | Engine | model | ISME420 30/L375 20/ OM 457LA | ||
| total width (mm) | 2550 | manufacturer | Xi'an Cummins / Dongfeng Cummins / Mercedes-Benz | ||||
| total height (mm) | 3960 | position/fuel | rear/diesel | ||||
| inner height (mm) | 2080 | type | straight 6-cylinder, water cooling, intercooling | ||||
| wheelbase (mm) | 6000 1600 | max power (kw) | 306/276/260 | ||||
| front/rear suspension (mm) | 2800/3300 | max torque (N.M) | 2010/1480/1750 | ||||
| approach angle/departure angle (º) | 7.5/7.5 | displacement (ml) | 10800/8900/11970 | ||||
| height of single step (mm) | < 380 | cylinder diameter × stroke (mm) | 125×147/114X144.5/128*155 | ||||
| max total mass defined by factory (kg) | 23000 | ||||||
| rated capacity (person) | 60 1 1 | max speed (km/h) | 100 | ||||
| luggage compartment volume (m3) | 9 (through type) | certification | |||||
| Item | Standard | Optional | |||||
| Chassis parameters | chassis | LCK6133RA Zhongtong | |||||
| gearbox | Fast 6DS180T 6 speed transmission | · Benz GO210-6E (Benz engine, hydrodynamic retarder) | |||||
| clutch | SACHS φ430, single plate, dry, diaphragm spring, imported clutch | ||||||
| front axle | Dongfeng Dana, 6.5T | Benz F7.5, disc brake | |||||
| rear axle | Dongfeng Dana, 13T (precision grinding gear) | ||||||
| third axle | Dongfeng Dana, 7.5T | Benz R440, 13T rear axle, disc brake | |||||
| suspension | air suspension with 8 airbags, imported shock absorber | ||||||
| steering | integral power steering gear | ZF8098 | |||||
| brake | disc brake, WABCO ABS/ASR, TELMA FN72-40 retarder | CAMA (DHB24) eddy current retarder | |||||
| fuel tank | 300L×2 | ||||||
| tire | 315/80R22.5 (Double Coin), aluminum alloy wheel (Fast Wheel) | Michelin | |||||
| accumulator/alternator | 200Ah×2 /140A 140A Prestolite | 150A engine from Benz | |||||

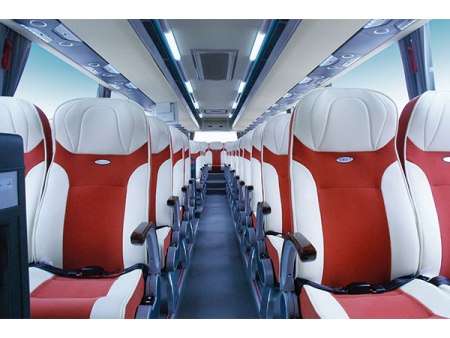

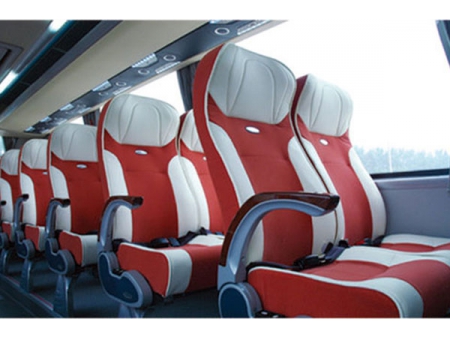

| seat | ZTZY1052 driver seat; ZTZY3280 modified passenger seat with armrest; safety belt for each seat (with EMARK mark) | ZTZY321/3300 passenger seat; lateral movement; adjustable pedal; tourist guide seat | |||||
