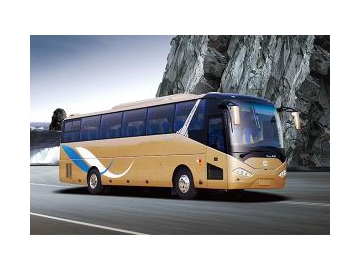

6129H Coach (Navigator)
Request a Quote
Navigator 6129H series coach is specially designed for tourist and passenger transport. The zhongtong chassis makes the bus to be highly safe and reliable. The bus's skeleton is designed with CAD finite element analysis technique. Combined instrument panel of the bus is made to be easily maintained and repaired. The original model of 6129H has been put onto market for 3 years.
| Bus parameter | total length (mm) | 11990 | Engine | model | WD615.44/L360 20/ OM 457LA |
| total width (mm) | 2550 | manufacturer | Weichai/DCEC/Cummins/Benz | ||
| total height (mm) | 3830 | position/fuel | Rear/diesel | ||
| inner height (mm) | 2030 | type | straight 6 cylinder, 4 stroke, water cooling, intercooling, direct injection | ||
| wheelbase (mm) | 6000 | max power (kw) | 235/254/260 | ||
| front/rear suspension (mm) | 2600/3390 | max torque (N.M) | 1250/1480/1750 | ||
| approach angle/departure angle (º) | 9/9 | displacement (ml) | 9726/8900/11970 | ||
| height of single step (mm) | 380 | cylinder diameter × stroke (mm) | 126×130/114X144.5/128*155 | ||
| max total mass defined by factory (kg) | 18000 | emission standard | |||
| rated capacity (person) | 51 1 5 | luggage compartment volume (m3) | 9 (through type) | ||
| max speed (km/h) | 100 | ||||
| Item | Standard configuration | Optional configuration | |||
| Chassis parameter | chassis | Zhongtong Bus Holding Co., Ltd. | |||
| gearbox | Qijiang S6-160/ fast 6DS180T, 6 speed transmission (OM 457LA) | · Benz GO210-6E (Benz engine, hydrodynamic retarder) | |||
| clutch | imported clutch φ430, single plate, dry | ||||
| front axle | Dongfeng Dana, 6.5T | Benz F7.5, disc brake | |||
| rear axle | Dongfeng Dana, 13T (precision grinding gear, imported bearing) | Benz R440, 13T rear axle, disc brake | |||
| suspension | air suspension with 6 airbags | ||||
| steering | recirculating type ball integral power steering gear | ZF8098 | |||
| brake | front-disc rear-drum brake, ABS (KORMEE), automatic CAMA gap adjusting arm | WABCO ABS, rear axle disc brake | |||
| fuel tank | 300L 300L | 235L 235L | |||
| tire | 295/80R22.5 (double coin) | Michelin tires, aluminum alloy wheels | |||
| accumulator/alternator | 195Ah/150AX2 (Prestolite) | ||||
| seat | 51 1 1 5; Zhongtong ZTZY3210 seats (with lateral movement); ZTZY1052 driver's seat; safety belt for each seat; safety belt alarming system for all seats | passenger seats with lateral movement; adjustable pedal; ZTZY20700 tour guide seat | |||
