FM300 Batch High Shear Mixer
Request a Quote
Pilot scale mixer for small scale dispersing, emulsifying and homogenizing in pilot plants
This batch high shear mixer is equipped with a high-performance motor that delivers strong torque output and precise speed display. It features three different stators, making it suitable for processing small batches of high-temperature and medium-to-high viscosity materials in laboratory settings. It is ideal for dispersion, homogenization, and emulsification tasks.
Key Specifications
- Motor power (W) 300
- Power supply 220V, 50Hz
- Mixing capacity (H₂O) (ml) 200-10000
- Max. viscosity (cP) 5000
Specifications
| Model | FM300 |
| Motor power (W) | 300 |
| Power supply | 220V, 50Hz |
| Mixing capacity (H₂O) (ml) | 200-10000 |
| Max. viscosity (cP) | 5000 |
| Speed range (rpm) | 300-11000 |
| Speed display | Scale |
| Speed control | Stepless |
| Medium-contact material | SS304 |
| Stirring shaft material | Copper alloy |
| Allowable ambient temperature (℃) | 5 to 40 |
| Allowable relative humidity (%) | 80 |
| Operaiton mode | Batch processing |
| Work frame/stand base | Standard |

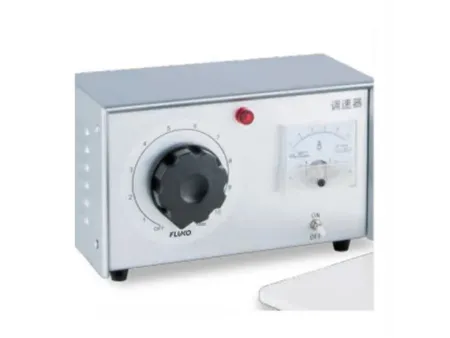

| Independent speed controller | Standard |
| Dimensions (mm) | 215×310×700 |
| Weight (kg) | ≤13 |
| Packaging | Carton |
Features

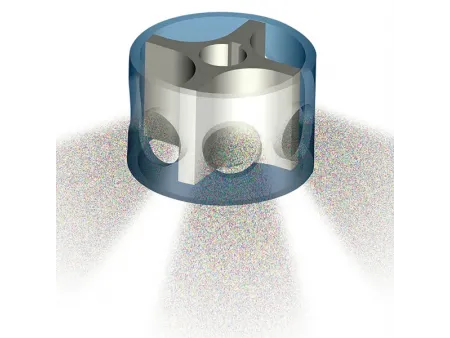

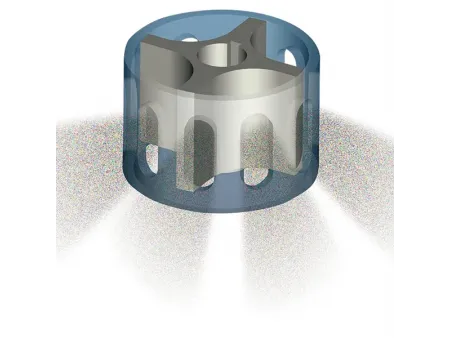

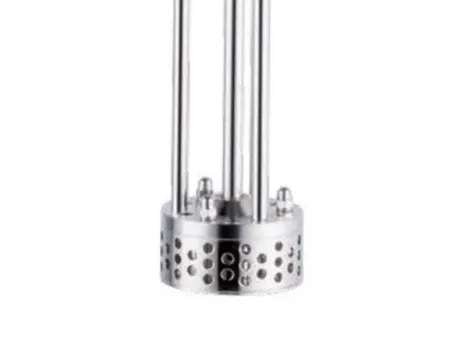

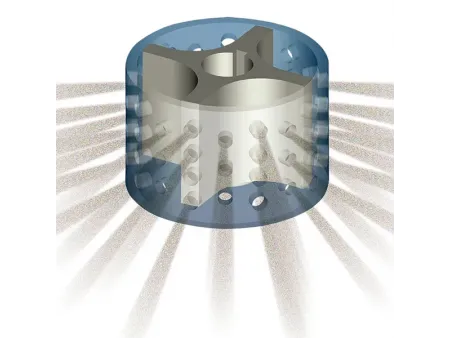

The high shear mixer is capable of processing high-temperature materials and includes three different stators to accommodate various processing needs.
