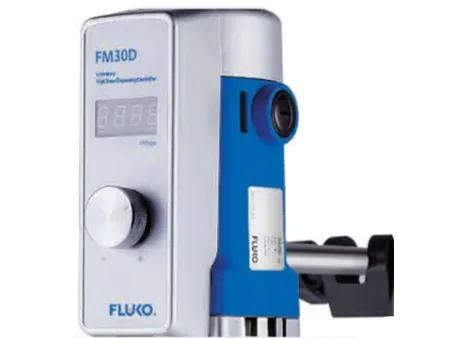

FM30D Batch High Shear Mixer
Request a Quote
Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials
This batch high shear mixer offers multiple mixing functions such as high-shear mixing, dispersing, emulsifying, and homogenizing. It is ideal for handling medium viscosity materials as well as solid-liquid mixtures.
Key Specifications
- Motor power (W) 500
- Power supply 220V, 50Hz
- Mixing capacity (H₂O) (ml) 200-10000
- Max. viscosity (cP) 5000
Specifications
| Model | FM30D |
| Motor power (W) | 500 |
| Power supply | 220V, 50Hz |
| Mixing capacity (H₂O) (ml) | 200-10000 |
| Max. viscosity (cP) | 5000 |
| Speed range (rpm) | 2000-14000 |
| Speed display | Digital display |
| Speed control | Stepless |
| Standard stator | Round hole |
| Medium-contact material | SS304 |
| Stirring shaft material | Copper alloy |
| Allowable ambient temperature (℃) | 5 to 40 |
| Allowable relative humidity (%) | 80 |
| Operaiton mode | Batch processing |
| Dimensions (mm) | 215×310×730 |
| Weight (kg) | ≤10 |
| Packaging | Carton |
Features

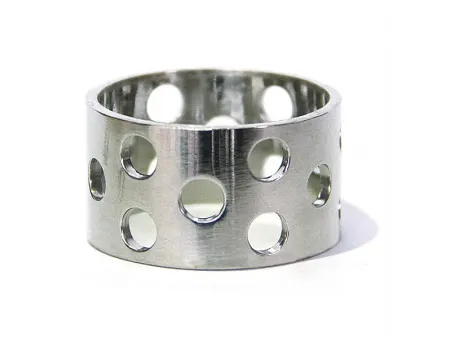

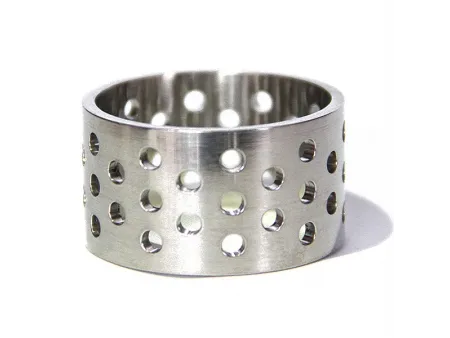

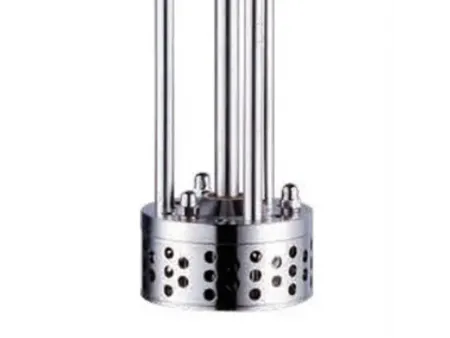

The mixer is constructed with a bearing-free design for smoother and more reliable operation. It is equipped with three sets of stators, allowing users to easily swap them according to the processing conditions and requirements to achieve the optimal results.
