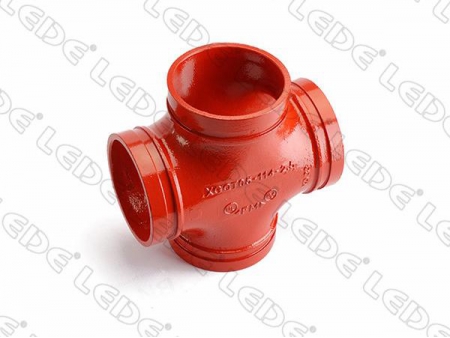

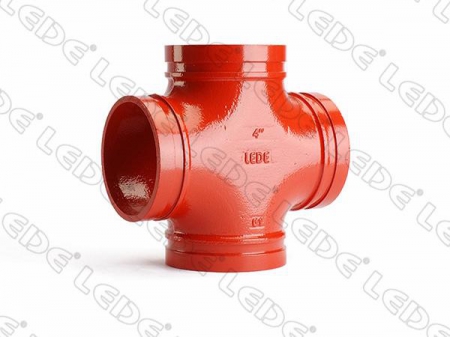

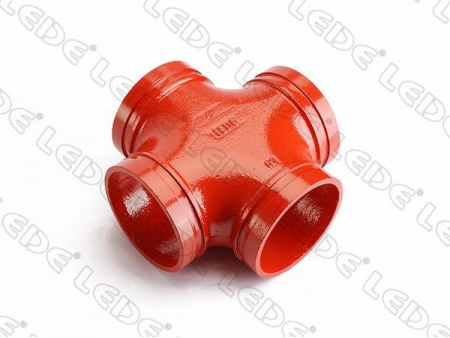

Grooved Pipe Cross
Request a Quote
Features
Grooved Cross (Straight) Standard Radius
Ductile Iron construction.
Lead free orange paint
Conforms to ASTM A536 standards
UL listed, FM approved
Technical Data

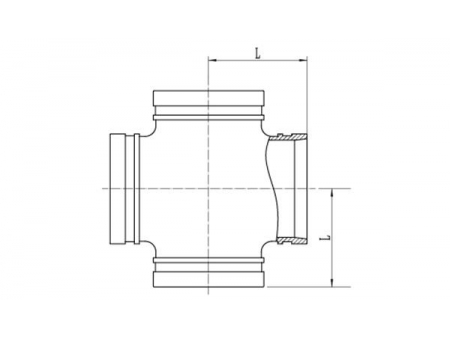

Nominal size mm/in | Pipe O.D mm/in | Dimension | Working Pressure (psi) | |
L(mm) | ||||
Short | Standard | |||
50 | 60.3 | 70 | 83 | 300 |
2 | 2.375 | |||
65 | 73 | 76 | 95 | |
21 / 2 | 2.875 | |||
65 | 76.1 | 76 | 95 | |
21 / 2 | 3 | |||
80 | 88.9 | 86 | 108 | |
3 | 3.5 | |||
100 | 108 | 102 | 127 | |
4 | 4.25 | |||
100 | 114.3 | 102 | 127 | |
4 | 4.5 | |||
125 | 133 | 121 | 140 | |
5 | 5.25 | |||
125 | 139.7 | 121 | 140 | |
5 | 5.5 | |||
150 | 159 | 130 | 165 | |
6 | 6.25 | |||
150 | 165.1 | 130 | 165 | |
6 | 6.5 | |||
150 | 168.3 | 140 | 165 | |
6 | 6.625 | |||
200 | 219.1 | 174 | 197 | |
8 | 8.625 | |||
250 | 273 | 215 | 229 | |
10 | 10.75 | |||
300 | 323.9 | 245 | 254 | |
12 | 12.75 |
LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe cross manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of pipe cross fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved cross as well as custom firefighting and water supply solutions based on the client needs.
