Grooved Pipe Tee

Request a Quote

View All: http://lede-fittings.com/1-4-1-grooved-tee/index.html

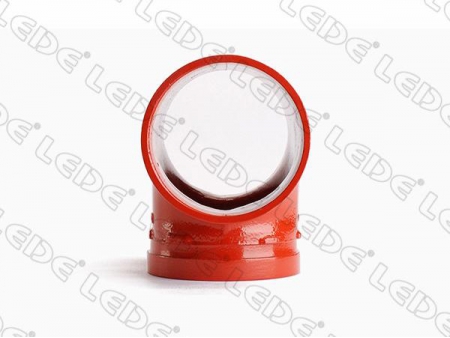

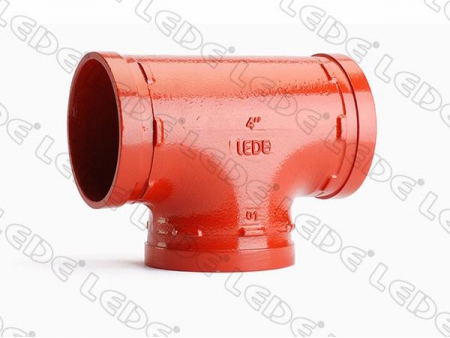

Product Introduction
1. The grooved tee pipe fittings are made from cast ductile iron conforming to ASTM A536 standards.
2. Dimensions of the pipe tee adhere to ANSI/AWWA C606-06 standards.
3. The center to end dimensions of the grooved pipe fitting meet manufacturer standards.
4. Fittings larger than 14" may be fabricated from steel pipe ASTM A53 Grade B or equivalent materials.
5. Coating options: epoxy, paint, dacromet, hot-dip galvanized.

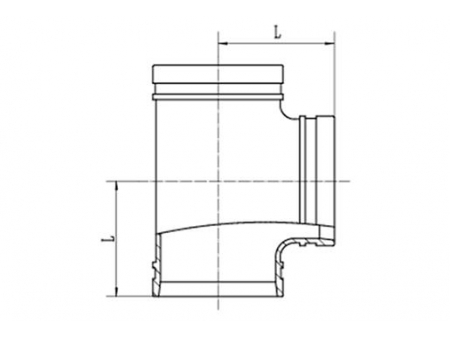

Dimension Drawing

Technical Data

Grooved Tee XGQT03
Nominal size mm/in	Pipe O.D mm/in	Dimension		Working Pressure (psi)
		L(mm)
		Short	Standard
25	33.7		57	300
1	1.327
32	42.4		70
11/4	1.669
40	48.3		70
11/2	1.9
50	60.3	70	84
2	2.375
65	73	76	95
21/2	2.875
65	76.1	76	95
21 / 2	3
80	88.9	85	108
3	3.5
100	108	102	127
4	4.25
100	114.3	102	127
4	4.5
125	133	121	140
5	5.25
125	139.7	121	140
5	5.5
125	141.3	121	140
5	5.563
150	159	130	165
6	6.25
150	165.1	130	165
6	6.5
150	168.3	140	165
6	6.625
200	219.1	175	197
8	8.625
250	273	215	229
10	10.75
300	323.9	220	254
12	12.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved pipe tee manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of pipe tee fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved pipe tee as well as custom firefighting and water supply solutions based on the client needs.
