Grooved pipe fittings

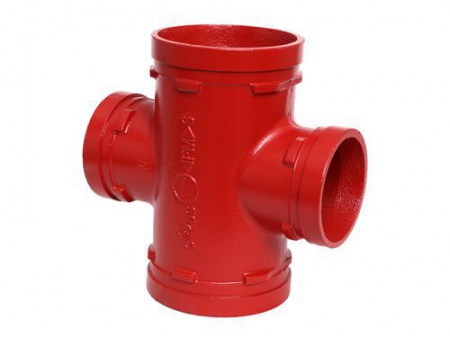

Grooved reducing cross is a pipe fitting with a cross shape. The branch outlet has grooves and a different size than the main outlet, which is commonly used to create two branch pipelines to 90 degree direction for connecting pipes of different diameters. This reducing tee provides a change in direction and adapts sizes or components. The appearance can be treated with epoxy powder, hot-dipped zinc, paint, dacromet, or according to your requirements.

Recommended Applications

Grooved reducing cross is suitable for water, gas, and oil piping systems in various industrial, building construction, municipal, and other fields.

Key Specifications
  • Available sizes: 3×1 inch~12×4 inch |DN80×25~DN300×100
  • Working pressure: 300PSI/2.07MPa
  • Certificate: CE certified
  • Coating: epoxy /galvanized
  • Color: red/orange/white etc.
Specifications
Nominal Size Pipe OD. Dimensions Dimensions
mm/in mm/in L1 mm/in L2mm/in
65×50 / 2 1/2×2 76x60 / 3.000×2.375 76 / 3.00 76 / 3.00
100x80 / 4x3 114 3x88.9 / 4.500x3.500 102 / 4.02 102 / 4.02
150x100 / 6x4 165.1 x 114.3 / 6.500x4.500 165 / 6.5 165 / 6.5
150x80 / 6x3 168.3x88.9 / 6.625x3.500 140 / 5.51 140 / 5.51
150x100 / 6x4 168.3x114.3 / 6.625x4.500 140 / 5.51 140 / 5.51
