Request a Quote

Application

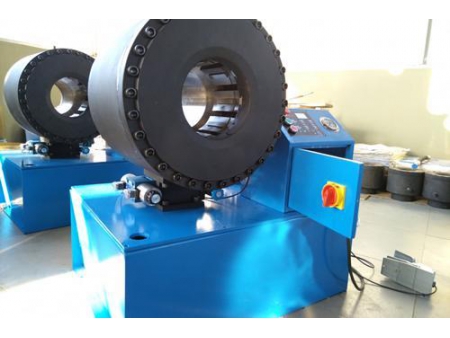

The crimp force of the YONG-FENG F160D Crimping Machine for Industrial Hydraulic Hose is 5800KN, with a crimp range of 6~127mm. Dies are customized according to client requirements. YONG-FENG F160D crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses and airbrake hoses.

Max. inner diameter
Industrial hoses: 5"
Hoses with 2 braided wires: 4"
Hoses with 4 spiral wires: 4"

Specification
Crimp head material FORGE STEEL
Crimp range 6-127mm
Hose size 4", 4SN
Passing diameter 152mm
Opening diameter 160mm
Opening 65mm
System pressure 31.5Mpa
Crimp force 5800kN
Drive 3kw/4kw
Standard voltage Customized
Control CNC
Standard dies Customized
Weight 650kg
L x W x H 900*800*900mm

Details
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and tear resistant with great impact absorbing and carrying capacity.


With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction.


Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly, with a resulting nice and neat crimping.
