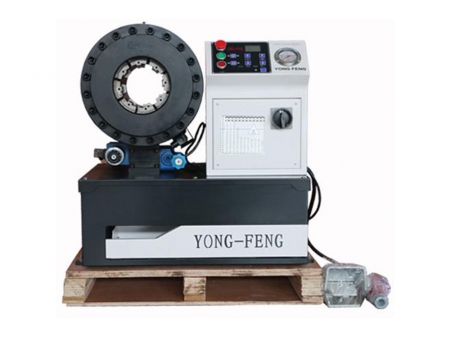

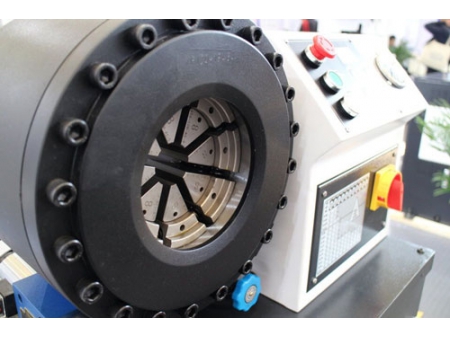

YONG-FENG Y76N Hydraulic Hose Crimping Machine
Application

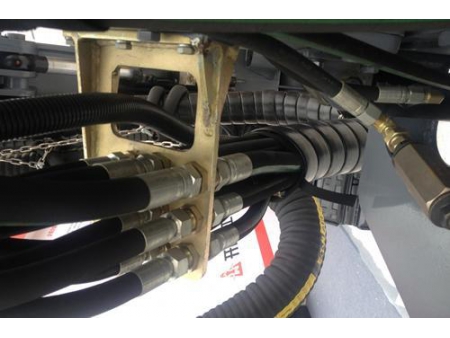

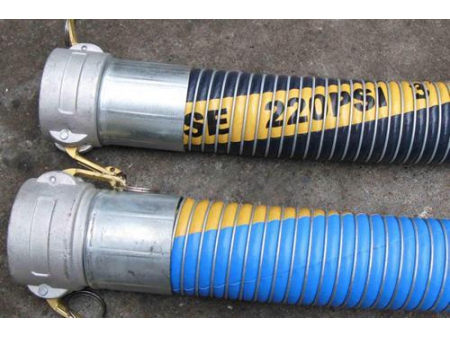

The crimp force of YONG-FENG Y76N Hydraulic Hose Crimping Machine is 3500kN, with a crimp range of 6~95mm and 12 sets of standard dies. YONG-FENG Y76N crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, water hoses, medical hoses, metal pipes, steel tubes, etc.

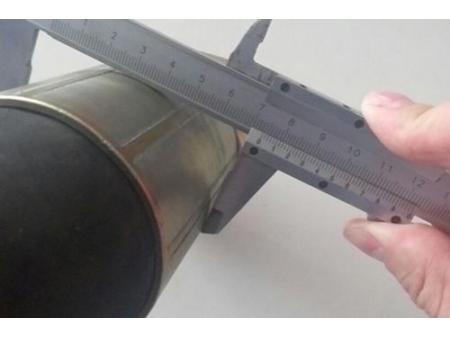

Max. inner diameter
Industrial hoses: 3"
Hoses with 2 braided wires: 3"
Hoses with 4 spiral wires: 3"
Hoses with 6 spiral wires: 2½"
Crimp head material | FORGE STEEL |
Crimp range | 6-95mm |
Hose size | 3", 4SN |
Passing diameter | 142mm |
Opening diameter | 142mm |
Opening | 35mm |
System pressure | 31.5Mpa |
Crimp force | 3500kN |
Drive | 3kw/4kw |
Standard voltage | Customized |
Control | Digital CNC with display |
Standard dies | 12 sets |
Weight | 420kg |
L x W x H | 700*495*730 mm |
Machine base | Included |
Foot pedal | Included |
Customized special die | Included |
Instruction book | Included |

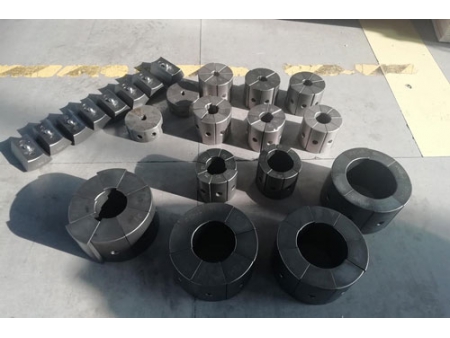

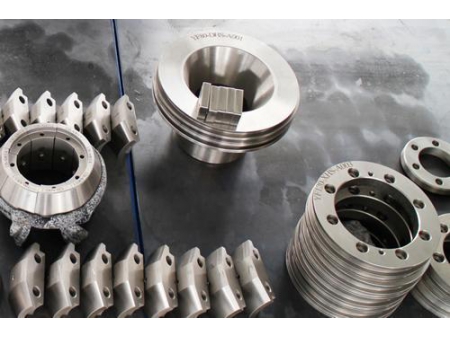

Specification of dies
No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 | Φ64 | Φ76 |
Crimp range | 15-25 | 18-28 | 20-30 | 23-33 | 26-36 | 29-39 | 37-47 | 46-56 | 51-61 | 63-73 | 70-80 | 85-95 |
Length | 45 | 45 | 45 | 50 | 65 | 65 | 80 | 80 | 80 | 80 | 80 | 80 |
Details

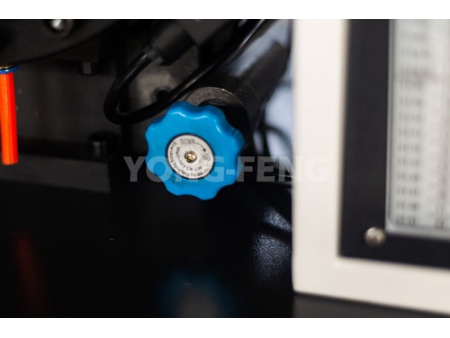

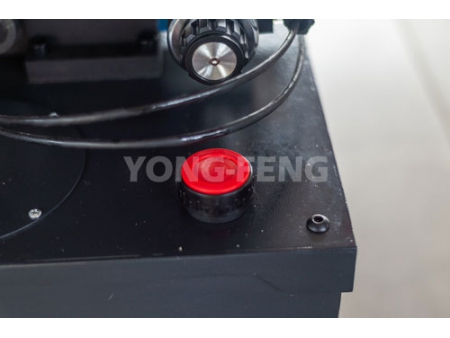

The oil cylinder cover, oil tank and piston rod are made of 40 chromium which improves the durability of the oil tank and the piston rod.
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction, and greatly improves the performance of the crimping machine.

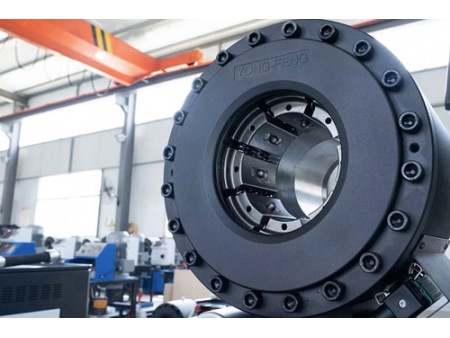

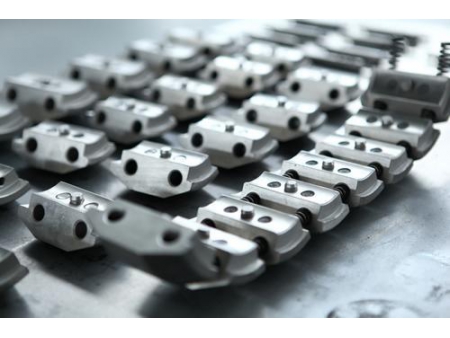

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly and allows automatic positioning, and thus the crimping is neat and nice.
