YONG-FENG F180 Crimping Machine for Industrial Hydraulic Hose
Application

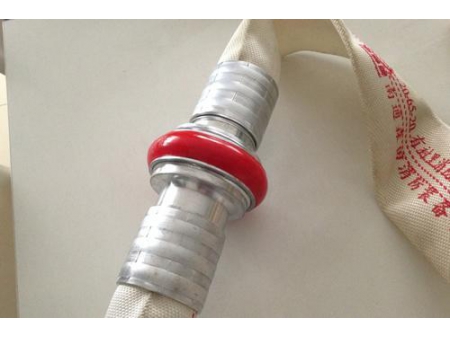

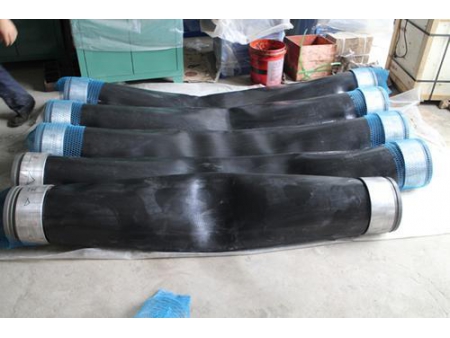

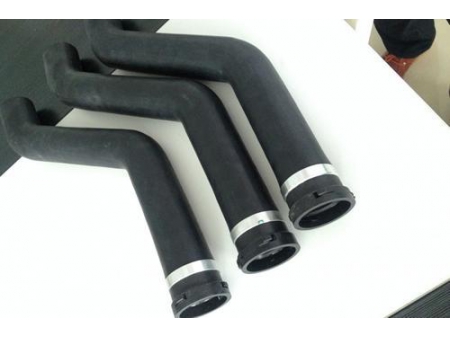

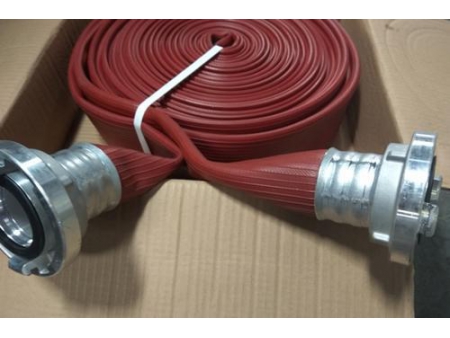

The crimp force of theYONG-FENG F180 crimping machine for industrial hydraulic hoses is 6300KN, with a crimp range of 6~160mm. Dies are customized according to client requirements. YONG-FENG F180 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses and airbrake hoses.
Max. inner diameter
Industrial hoses: 6"
Hoses with 2 braided wires: 4"
Hoses with 4 spiral wires: 3"
Hoses with 6 spiral wires: 3"
| Crimp head material | FORGE STEEL |
| Crimp range | 6-160mm |
| Hose size | 3" 6SN, 6" |
| Passing diameter | 142mm |
| Opening diameter | 180mm |
| Opening | 40mm |
| System pressure | 31.5Mpa |
| Crimp force | 6300kN |
| Drive | 7.5kw |
| Standard voltage | Customized |
| Control | Full automatic |
| Standard dies | Customized |
| Weight | 740kg |
| L x W x H | 900*800*1000mm |
Details

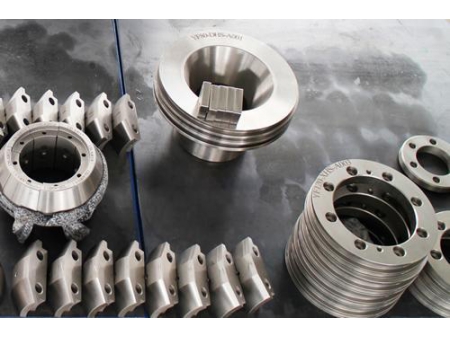

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and tear resistant with great impact absorbing and carrying capacity.

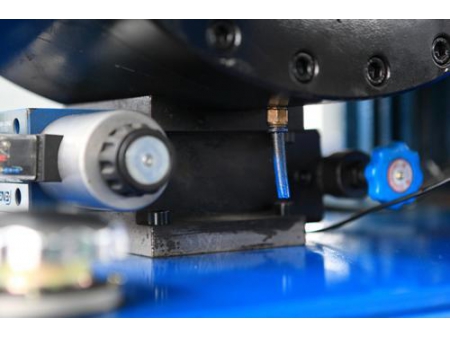

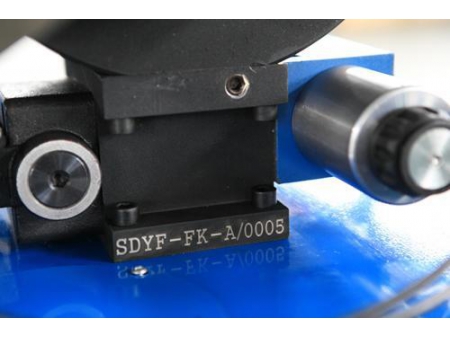

With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction.

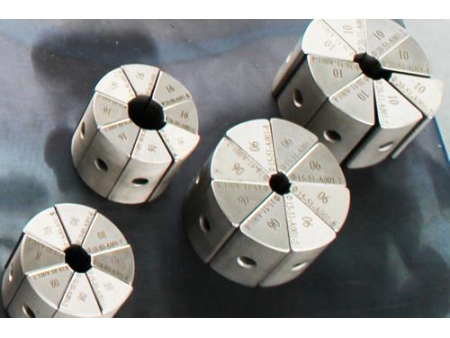

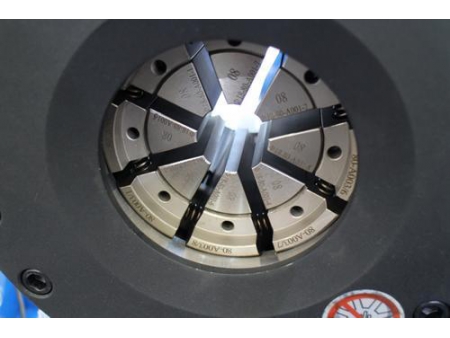

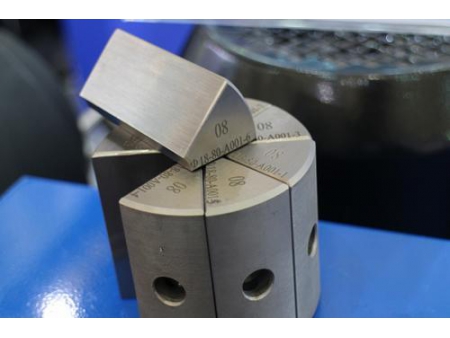

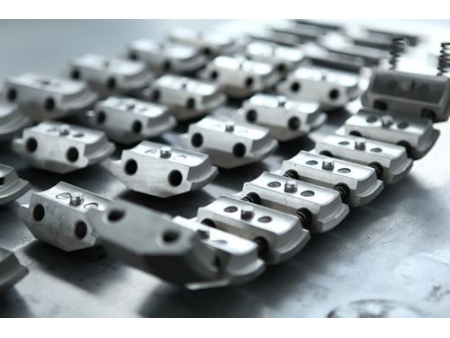

Our crimping dies are made of Cr12 die steel and connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat and nice.
