JW8002/JW8007 Benchtop/Rack-mount Stabilized Light Source

JW8002/JW8007

This light source is designed to generate stable and precise optical signals, making it essential for applications such as optical communication, signal transmission, and fiber sensing. Equipped with advanced automatic power control (APC) and automatic temperature control (ATC) technologies, it ensures exceptional output stability and wavelength consistency. Its versatile design is ideal for research, production, and engineering in the optical field.

Features

High output power stability: up to 0.01dB
One-touch operation for ease of use
Excellent wavelength stability
High-precision APC and ATC circuits
Customizable wavelengths for specific requirements
Supports 1 to 4 wavelength outputs
Minimal impact on return loss for improved performance

Specifications

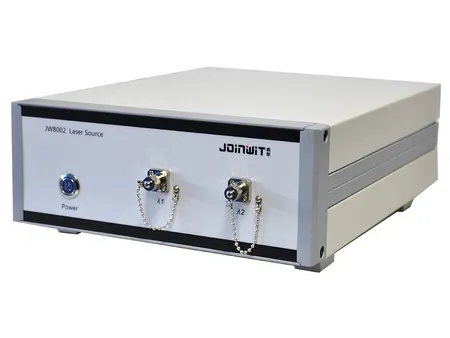

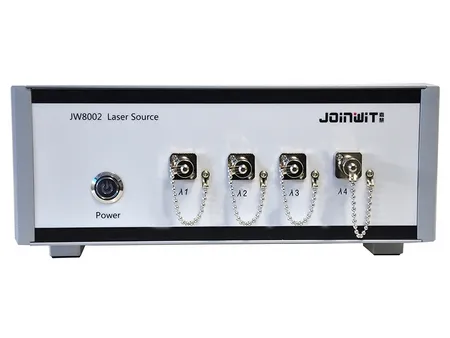

JW8002
Benchtop Stabilized Light Source

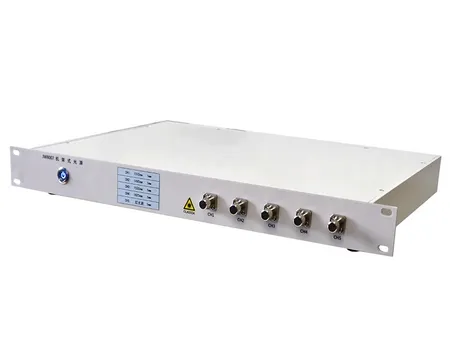

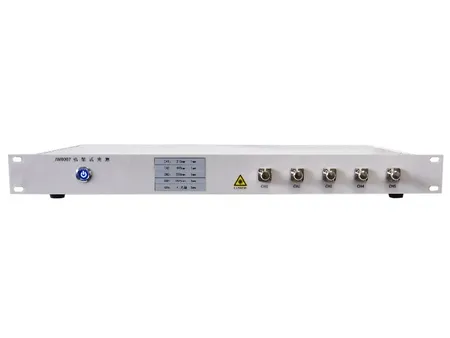

JW8007
Rack-mount Stabilized Light Source

Model	JW8002	JW8007
Supported Channel	1/2/3/4
Maximum Output Power	2/5/10mW, or customizable
Working Wavelength	1310/1550nm, or customizable
Output Power Stability	±0.01dB (15min/2mW, 25℃) ±0.05dB (8hour/2mW, 25℃)
Laser Type	Distributed feedback (DFB), or customizable
Output Return Loss	>45dB
Temperature Stability	±0.1℃
Temperature Setting Range	20 to 30℃
Optical Connector Type	FC/APC, or customizable
Power Supply	AC 220V	AC 220V or DC 48V
Dimensions	2U×235×380	19inch standard 1U rack mount
Weight	< 3.5kg
