Gemological Instruments
Fiber optic light sources for gem identification
Cold light sources, also known as fiber optic lights, provide a focused and stable illumination essential for gemstone examination. These light sources operate with high brightness and low power consumption, ensuring a continuous spectrum from 400nm to 700nm. Unlike conventional lighting, fiber optic light reduces heat output, preventing thermal damage to sensitive gemstones during analysis.
Application

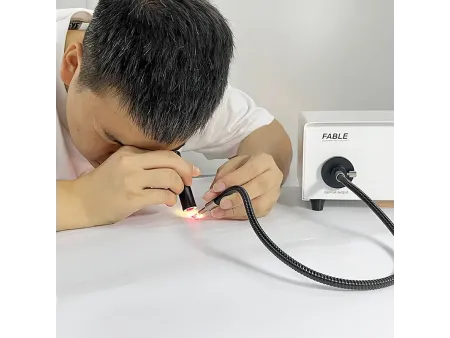

- Works with gem spectroscopes to reveal absorption spectra, helping identify a gemstone’s composition and authenticity.

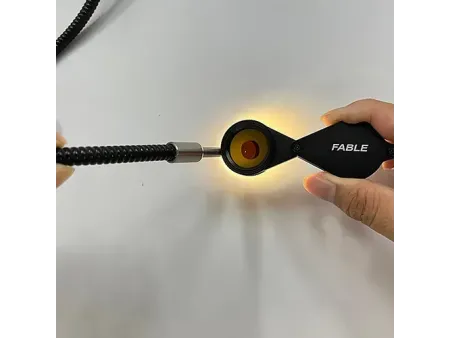

- Used with a Chelsea Filter to check whether blue or green gemstones exhibit a red reaction, distinguishing natural from synthetic or treated stones.
| Power Supply | 12V/50W |
| Input voltage | 110-240V |
| Dimensions | 180(L)×180(W)×120(H)mm |
| Weight | approx. 2.0kg |

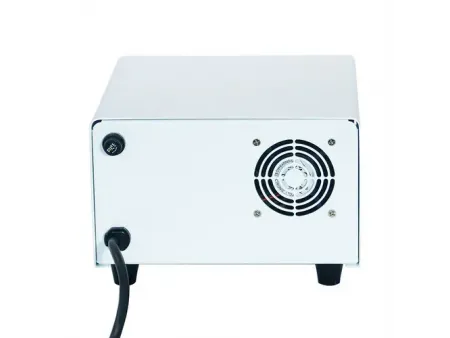

| Cooling | Built-in cooling fan |
Features
Light Bulb - Built-in focusing system effectively enhances light source brightness. Integrated buffer circuit protects the bulb.
- High-intensity cold light halogen lamp ensures greater luminous efficiency while minimizing heat impact on the fiber optic tube.
- The lamp holder is designed for easy and secure bulb replacement, ensuring a hassle-free process.
- Continuously adjustable brightness with a universal plug-in circuit for easier maintenance.

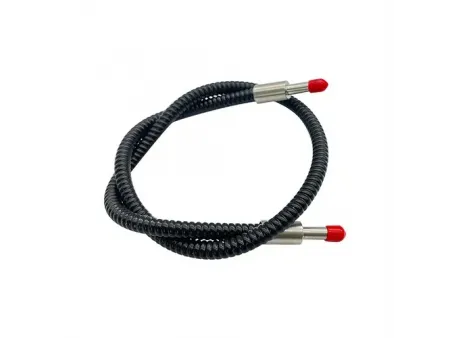

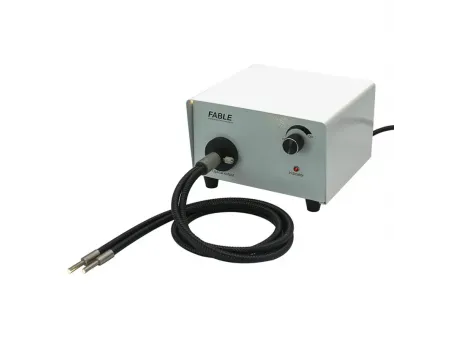

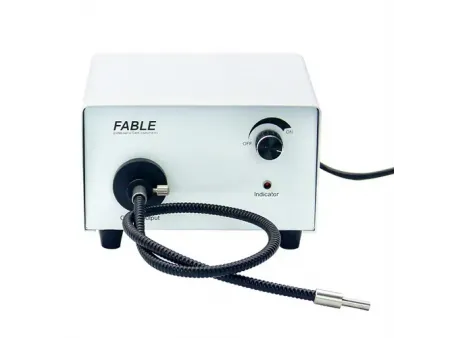

- Equipped with a single-head 600mm high-temperature resistant flexible fiber optic tube.
| Power Supply | 12V/50W |
| Input voltage | 110-240V |
| Dimensions | 180(L)×180(W)×120(H)mm |
| Weight | approx. 2.0kg |

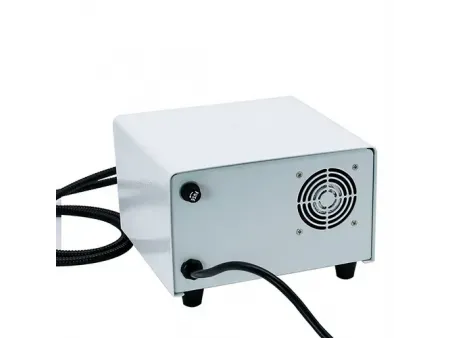

| Cooling | Built-in cooling fan |
Features
Light Bulb - Built-in focusing system effectively enhances light source brightness. Integrated buffer circuit protects the bulb.
- High-intensity cold light halogen lamp ensures greater luminous efficiency while minimizing heat impact on the fiber optic tube.
- The lamp holder is designed for easy and secure bulb replacement, ensuring a hassle-free process.
- Continuously adjustable brightness with a universal plug-in circuit for easier maintenance.

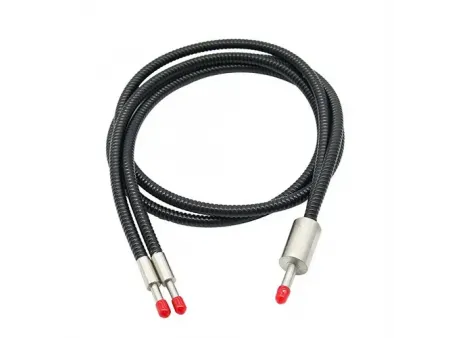

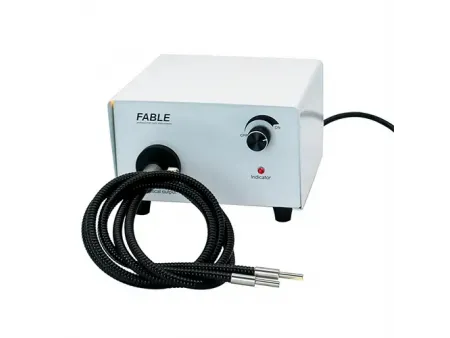

- Equipped with a dual-head 1000mm high-temperature resistant flexible fiber optic tube.
| Power Supply | 12V/150W |
| Input voltage | 220V |
| Dimensions | 180(L)×180(W)×150(H)mm |
| Weight | approx. 4.73kg |
| Cooling | Built-in cooling fan |
Features
Light Bulb - High-intensity cold light halogen lamp ensures greater luminous efficiency while minimizing heat impact on the fiber optic tube.
- The lamp holder is designed for easy and secure bulb replacement, ensuring a hassle-free process.
- Continuously adjustable brightness with a universal plug-in circuit for easier maintenance.

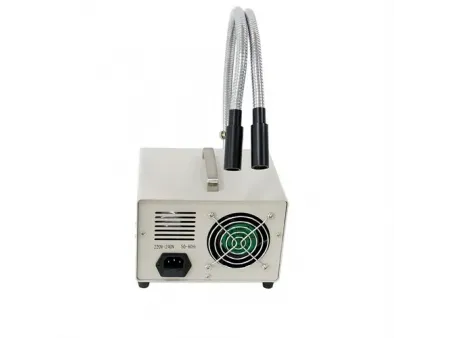

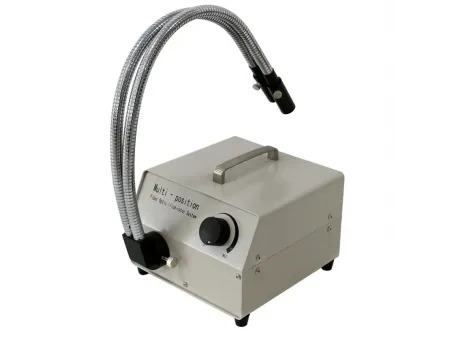

- Equipped with a dual-head 600mm high-temperature resistant rigid fiber optic tube.
