Tungsten halogen lamp power supply and lamp house

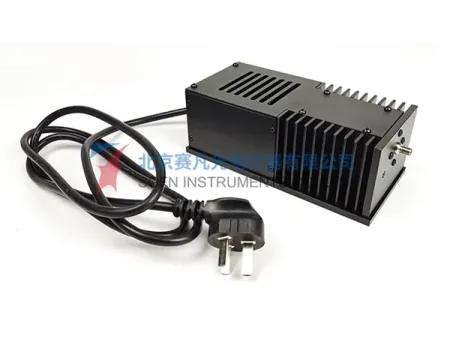

7ILT Tungsten Lamp House & Power Supply
Specifications
  • Spectral range: 300-2500nm
  • Color temperature: 3000K-3200K
  • Bulb luminous flux: 1450lm\1450lm

Our company manufactures the 7ILT series tungsten halogen light source housing, featuring an OSRAM bulb and socket imported from Germany, ensuring long service life. Users can easily replace the bulb themselves. This light source boasts high color temperature, superior light efficiency, and stable luminous flux characteristics. Even as the lamp nears the end of its life, it maintains 95-98% of its initial luminous flux, ensuring consistent performance. When paired with our 7IPT series constant current power supply, the output luminous flux fluctuates by only 0.12%-0.2%. Versatile in application, the light source can be used independently or combined with our monochromator, sample chamber, filter wheel, and other products to create a variety of application systems.

7ILT10 Tungsten Lamp for Fiber
Specifications
  • Spectral range: 360-2000nm
  • Color temperature: 2900K-3200K
  • Bulb luminous flux: 150lm

Equipped with an SMA905 optical fiber socket, the 7ILT10 tungsten lamp allows seamless connection to standard SMA905 interfaces, channeling energy into the fiber for illumination. Its compact size, simple structure, convenient operation, high utilization rate of light energy, and high color temperature make it ideal for various fiber lighting applications.
